› Portable DVI to 3G/HD/SD-SDI Converter
› 1 DVI input, 1 analog audio input, 2 SDI output
› Embed Analog audio into SDI output
› Power/input/output status indicator
› Pole-tap 6-18V DC power input
› Heavy duty aluminium housing
› Bottom screw threads for installing
Portable Mini Converter
DVI (DVI-D, 18+1) to SDI

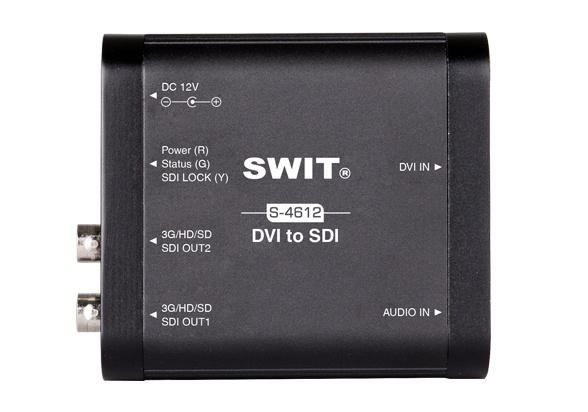

S-4612 is a mini converter for DVI
to SDI conversion, (DVI-D, 18+1
connector), which can be widely
used for DVI video source to
deliver and broadcast, support up
to 1080p 50/60 format DVI to
convert to SDI.

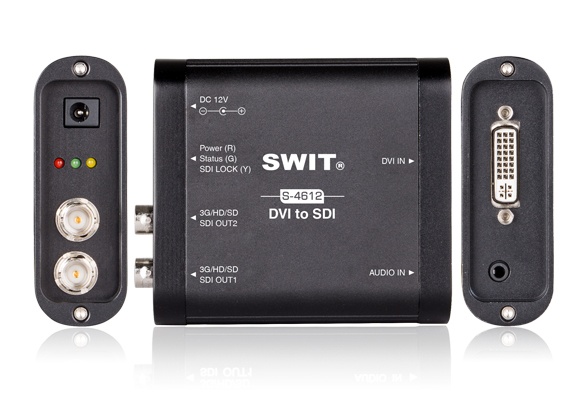

Input and Output
S-4612 offers:
1× DVI-D (18+1) input
2× 3G/HD/SD-SDI output (Reclocked)
1× 3.5mm audio input
(The DVI to SDI supports the same format conversion only.)
S-4612 features low SDI jitter and SDI re-clocking so that you can use the longest SDI cable lengths and maintain pristine quality images.
Embed Analog audio into SDI output
Analog audio input and embed to SDI
S-4612 support 3.5mm analog audio input, and can be
embedded into SDI to output. The audio supports 48kHz
sample rate.
Status Indicators
Power / Input / Output
S-4612 provides 3 LED indictors, to check if
the power is connected, and if the
input/output signal is delivered.
Power Supply
Pole-tap DC input
The mini converter is powered by pole-tap DC socket. The
package includes an AC-DC power adaptor, and you can also
connect DC cable from 6-18V batteries.

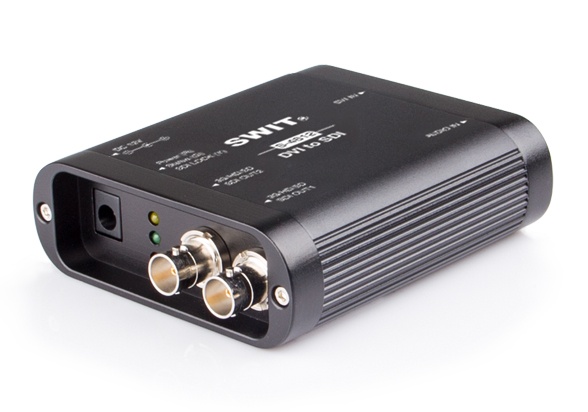

Heavy Duty Housing
The S-4612 mini converter adopts
unibody aluminium alloy housing, strong
for field using and protects the BNC
connectors effectively.
Installation

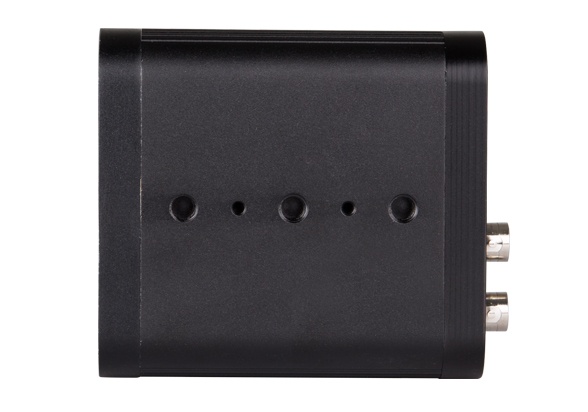

S-4612 provides the bottom 1/4-inch screw threads for fixing on cameras, and
an installing plate is supplied in the package, for fixing on wall and binding
the BNC/DVI cables.
Input
DVI-D ×1 | DVI input |
3.5mm×1 | Analog audio input |
Output
BNC ×2 | Converted 3G/HD/SD-SDI output |
Video Format
SDI | 1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
DVI | 1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| 480i / 576i | |
Audio | 48KHz Sync |
General
Power | ≤3W |
Working Voltage | DC 6-18V |
Working Environment | Temperature: 0°C-+70°C, Humidity:10%-90% |
Dimensions | 98×84×29 mm |
Net weight | Net 207g; With package 0.5kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

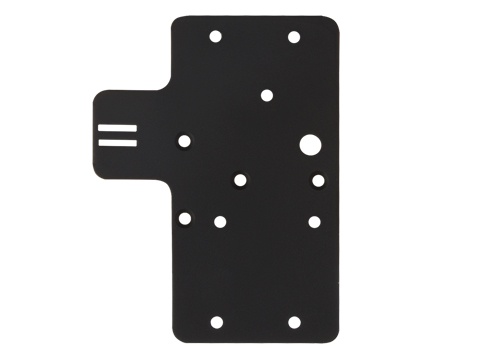

Installation plate
-

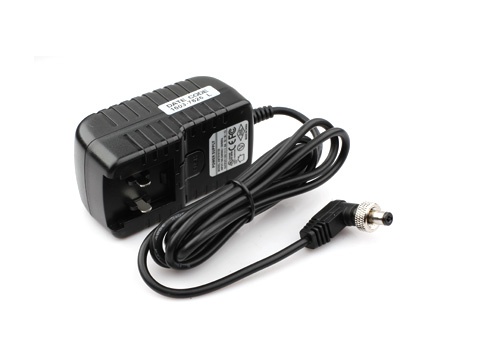

AC-DC Adaptor
We provide 1 year conditional warranty for Wireless video and converters.
The following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) The attenuation of signal quality resulting from being used in any special environments.
(3) Any damage caused by powering the product with third-party power adaptors.
(4) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(5) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
