› Portable SDI to Audio De-embedder
› 3G/HD/SD-SDI supported
› De-embed any 2-ch from first 8-ch audio
› Output AES/EBU audio
› Output 6.35mm balanced audio
› Provide 2x SDI loop output
› Power/input/output status indicator
› Pole-tap 6-18V DC power input
› Heavy duty aluminium housing
› Bottom screw threads for installing

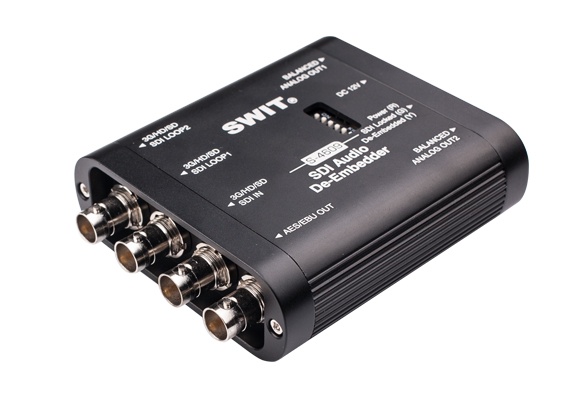

SDI audio de-embedder
S-4609 is a portable mini
converter of SDI audio
de-embedder, supports up to
3Gb/s SDI, and can be widely used
in broadcast field production and
professional audio/video
conversion and transmission.

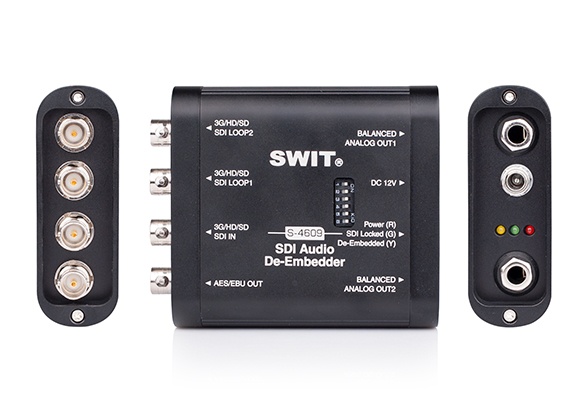

Input and Output
S-4609 provides:
1x 3G/HD/SD-SDI input
2x 3G/HD/SD-SDI loop output (Reclocked)
1x AES/EBU digital audio output (2-ch)
2x 6.35mm analog audio output (balanced)
(If both AES/EBU audio and analog audio is
connected, only AES/EBU audio outputs)

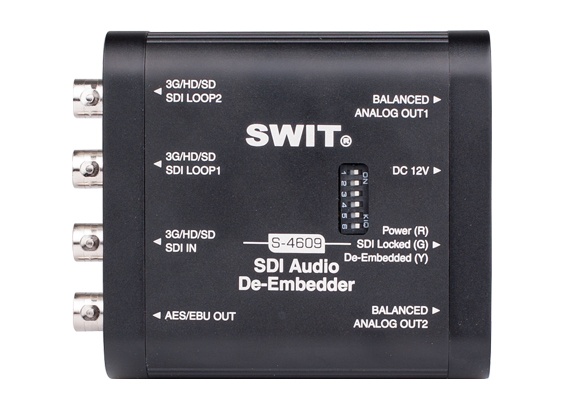

De-embed Channel Selection
By 6 switchers
S-4609 can de-embeded any 2-ch audio from SDI first 8-ch embedded audios. User can select the channel number to be

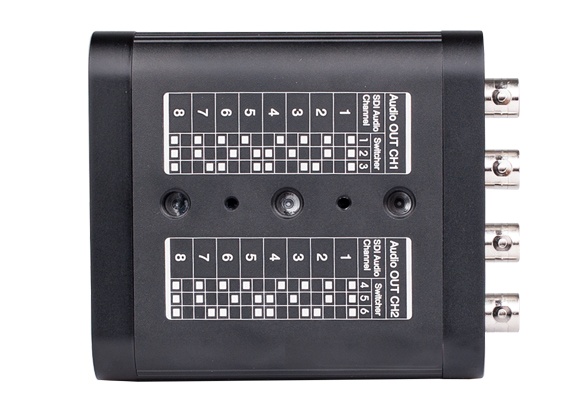

de-embedded by the 6 switchers on the front panel of the product. And on the rear side, S-4609 provides the description of
the 6 switchers for reference.
Status Indicators
Power / SDI input / De-embed
S-4609 provides 3 LED indictors, to check if
the power is connected, if the SDI input is
recognized, and if de-embedded audio is
deliver
Power Supply
Pole-tap DC input
The mini converter is powered by pole-tap DC socket.
The package includes an AC-DC power adaptor, and you
can also connect DC cable from 6-18V batteries.
Heavy Duty Housing
The S-4609 mini converter adopts
unibody aluminium alloy housing, strong
for field using and protects the
audio/video connectors effectively.
Installation
S-4609 provides the bottom 1/4-inch screw threads for fixing on cameras, and
an installing plate is supplied in the package, for fixing on wall and binding the
BNC/audio cables.
Input
BNC×1 | 3G/HD/SD-SDI input ×1 |
Output
BNC ×2 | 3G/HD/SD-SDI loop output ×2 |
BNC ×1 | AES/EBU digital audio output ×1 |
6.35mm ×2 | Analog audio (balanced) output ×2 |
Video Format
SDI | 1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) |
Audio Formats
Digital audio | Type: AES/EBU |
| Output level: 5Vp-p | |
| Sample frequency: 48KHz | |
Analog audio | Max output level: +24dbu |
| Bandwidth: 20Hz-20KHz |
General
Power | ≤3W |
Working Voltage | DC 6-18V |
Working Environment | Temperature: 0°C-+50°C, Humidity:10%-90% |
Dimensions | 98×84×29 mm |
Net weight | Net 235g; With package 0.55kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-
Installation plate
-

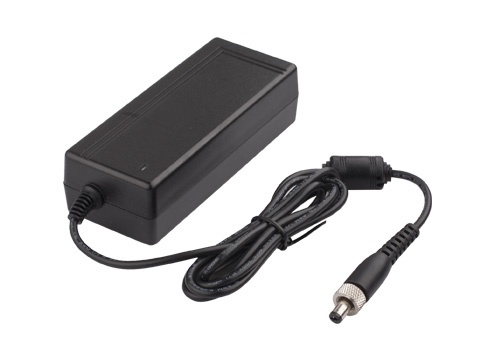

AC-DC Adaptor
We provide 1 year conditional warranty for Wireless video and converters.
The following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) The attenuation of signal quality resulting from being used in any special environments.
(3) Any damage caused by powering the product with third-party power adaptors.
(4) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(5) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
