› Portable Optical Fiber Converter
› Bi-directional Optical Fiber to SDI and SDI to Optical Fiber
› Single mode Optical Fiber, LC connector
› Max 20km reliable transmission
› Support hot swap of the optical module
› Power / SDI input status indicator
› Pole-tap 6-18V DC power input
› Heavy duty aluminium housing
› Bottom screw threads for installing
Portable Mini Converter
Bi-directional SDI/Optical
With S-4607 mini converter, you
can convert SDI to LC single mode
Optical Fiber, and convert Optical
Fiber to SDI simultaneously. It’s
widely used on transmitting SDI in
a long distance and
bi-directionally.

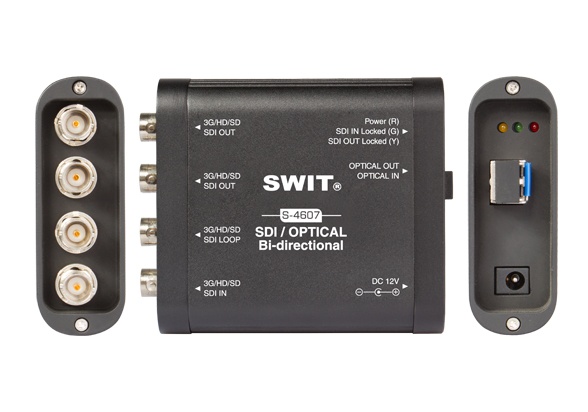

Input and Output
S-4607 SDI to Optical channel:
1× 3G/HD/SD-SDI input
1× 3G/HD/SD-SDI loop output (Reclocked)
1× LC Optical Fiber output
S-4607 Optical to SDI channel:
1× LC Optical Fiber input
2× 3G/HD/SD-SDI output
Encoder and Decoder
Using 2× S-4607
You can use 2× S-4607 to transmit SDI via Optical fiber, and bi-directionally. The reliable transmission distance is 20km.
Power Supply
The mini converter is powered by pole-tap DC socket. The package includes an
AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.

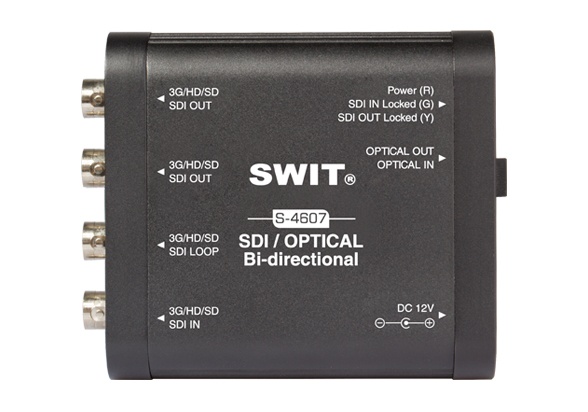

Status Indicators
Power / SDI output
S-4607 provides 3 LED indictors, to check if the
power is connected, and if the SDI input /
Output is recognized.

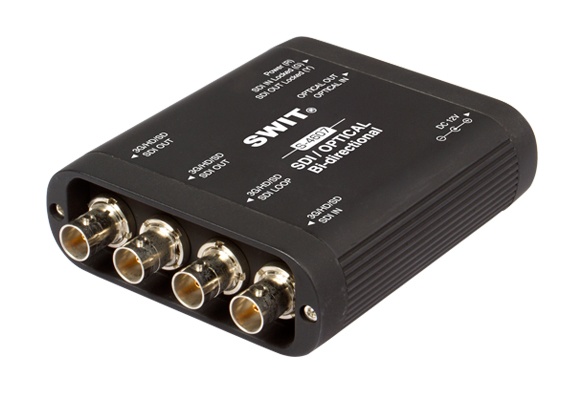

Heavy Duty Housing
The S-4607 mini converter adopts
unibody aluminium alloy housing, strong
for field using and protects the BNC
connectors effectively.

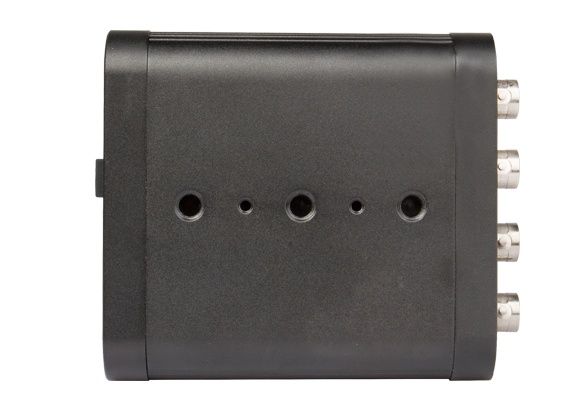

Installation
S-4607 provides the bottom 1/4-inch screw threads for fixing on cameras, and
an installing plate is supplied in the package, for fixing on wall and binding
the BNC cables and optical fibers.
Input
BNC×1 | 3G/HD/SD-SDI input |
LC ×1 | Optical fiber input |
Output
BNC ×1 | 3G/HD/SD-SDI loop output |
LC ×1 | Converted Optical fiber output |
BNC×2 | Converted 3G/HD/SD-SDI output |
Video Format
SDI | 1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
Optical Fiber | SMPTE 297-2006 |
| Input: 1260-1580nm wavelength | |
Output: 1310nm wavelength |
General
Power | ≤4W |
Working Voltage | DC 6-18V |
Working Environment | Temperature: 0°C-+70°C, Humidity:10%-90% |
Dimensions | 98×84×29 mm |
Net weight | Net 250g; With package 0.55kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

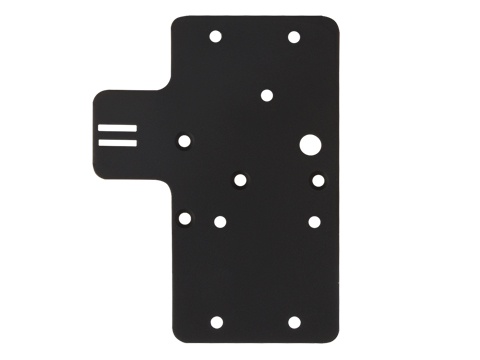

Installation plate
-

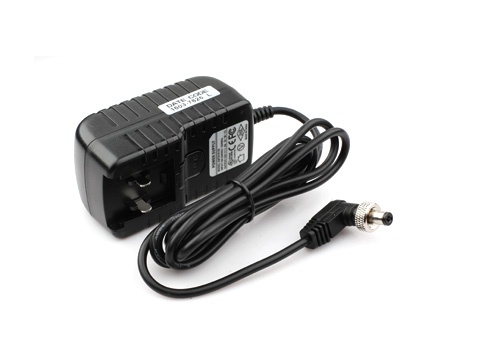

AC-DC Adaptor
We provide 1 year conditional warranty for Wireless video and converters.
The following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) The attenuation of signal quality resulting from being used in any special environments.
(3) Any damage caused by powering the product with third-party power adaptors.
(4) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(5) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
