› Portable Optical Fiber to 3G/HD/SD-SDI Converter
› 1 Fiber input, 2 SDI output
› Single mode Optical Fiber, LC connector
› Max 20km reliable transmission
› Support hot swap of the optical module
› Power / SDI input status indicator
› Pole-tap 6-18V DC power input
› Heavy duty aluminium housing
› Bottom screw threads for installing
Portable Mini Converter
Optical Fiber to SDI

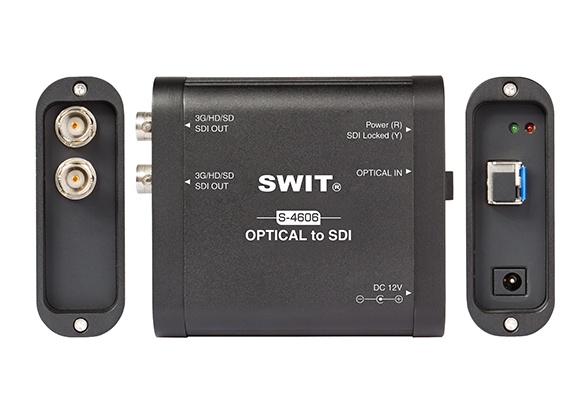

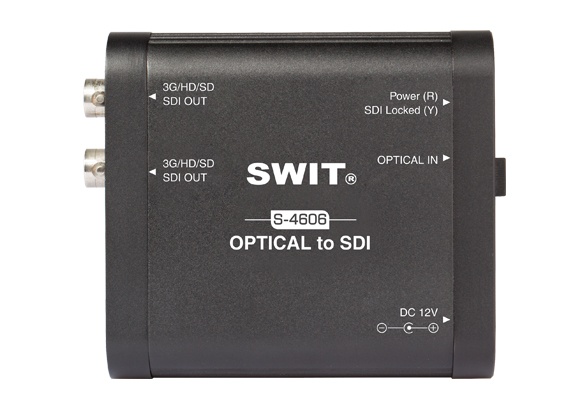

S-4606 is a mini converter for LC
single mode Optical Fiber to SDI
conversion, widely used on
transmitting SDI in a long distance.
Input and Output
S-4606 offers:
1×LC Optical Fiber input
2× 3G/HD/SD-SDI output
Encoder and Decoder
Working together with S-4605
The S-4606 works as decoder to convert Optical fiber back to SDI, and you can use SWIT S-4605 (SDI to Optical fiber
encoder) together, to transmit SDI via fiber up to 20km reliable distance.
Status Indicators
Power / SDI output
S-4606 provides 2 LED indictors, to check if
the power is connected, and if the output
SDI is recognized.
Power Supply
The mini converter is powered by pole-tap DC socket. The package includes an
AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.
Heavy Duty Housing

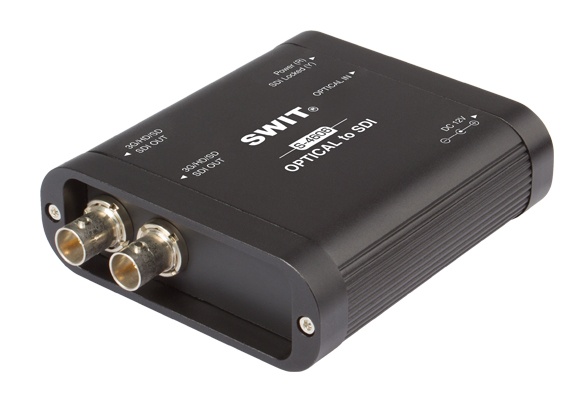

The S-4606 mini converter adopts
unibody aluminium alloy housing, strong
for field using and protects the BNC
connectors effectively.
Installation

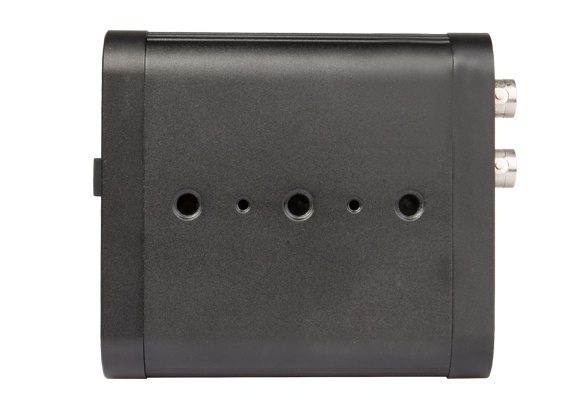

S-4606 provides the bottom 1/4-inch screw threads for fixing on cameras, and
an installing plate is supplied in the package, for fixing on wall and binding
the BNC cables and optical fibers.
Input
LC ×1 | Optical fiber input |
Output
BNC ×2 | Converted 3G/HD/SD-SDI output |
Video Format
SDI | 1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
Optical Fiber | SMPTE 297-2006 |
| 1310nm wavelength |
General
Power | ≤3W |
Working Voltage | DC 6-18V |
Working Environment | Temperature: 0°C-+70°C, Humidity:10%-90% |
Dimensions | 98×84×29 mm |
Net weight | Net 220g; With package 0.5kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

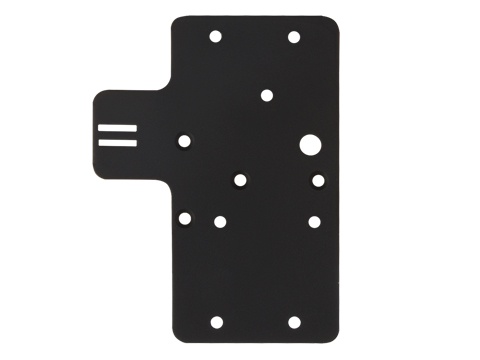

Installation plate
-

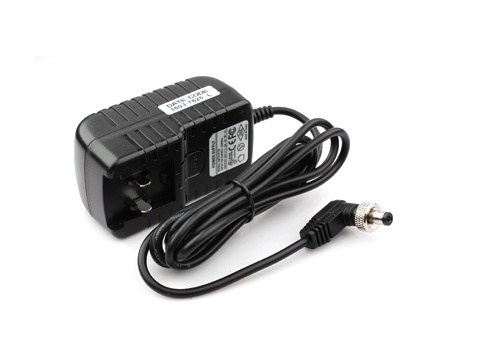

AC-DC Adaptor
We provide 1 year conditional warranty for Wireless video and converters.
The following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) The attenuation of signal quality resulting from being used in any special environments.
(3) Any damage caused by powering the product with third-party power adaptors.
(4) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(5) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
