› V-mount battery charger
› 4-ch simultaneous charging
› 3A per channel quick charging
› 2x 15V/6A 4-pin XLR DC output
› LED charging indicators for each channel

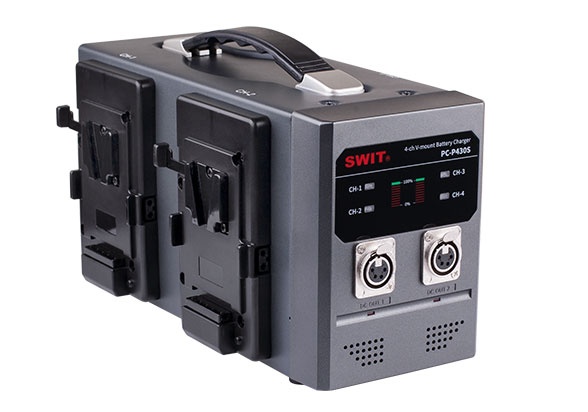

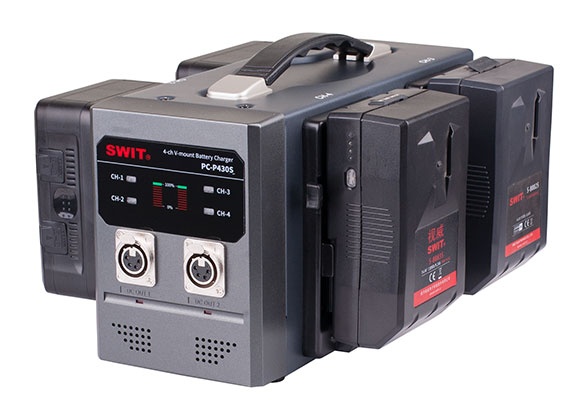

4-ch Simultaneous Quick Charger
For V-mount batteries
PC-P430S can charge 4pcs V-mount camera
batteries simultaneously. The charging
output is DC16.8V, 3A each channel.

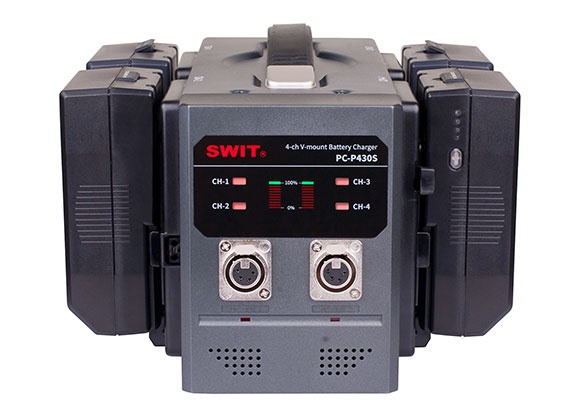

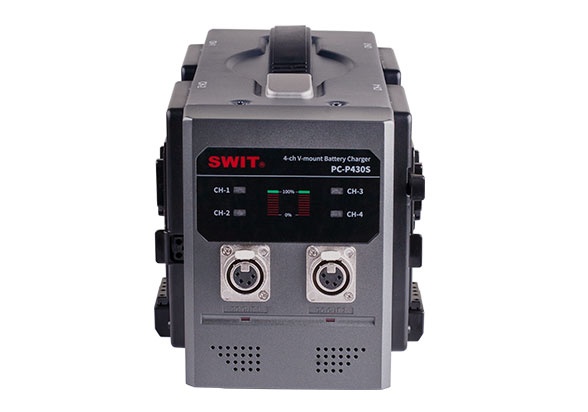

LED Charging Indicators
The PC-P430S has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors:
Display Red: Battery is charging, capacity below 80%;
Display Yellow: Battery is charging, capacity above 80%;
Display Green: Charging finished.
AC-DC Adapting Output
PC-P430S has 2x 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 XLR female to male cable (optional purchase), the PC-P430S can be used as AC-DC adaptor of 2-ch DC 15V, 6A, 90W simultaneous output.
*Please note the AC-DC adapting output will not work when battery is charging.
Power | Max276W |
Input | AC100V-240V 50/60Hz |
Charging Output | DC 16.8V, 3A×4 |
Adapting Output | DC 15V, 6A×2 |
Dimensions | 285×144×173mm |
Net weight | Net 3.27kg; With package 3.8kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

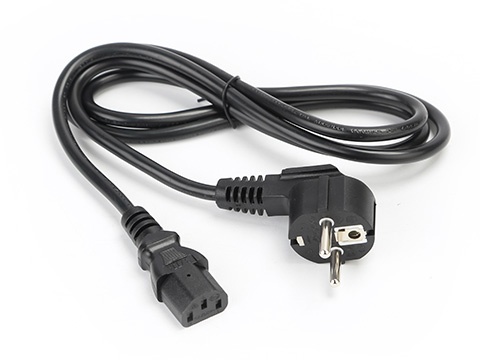

AC power cable
-

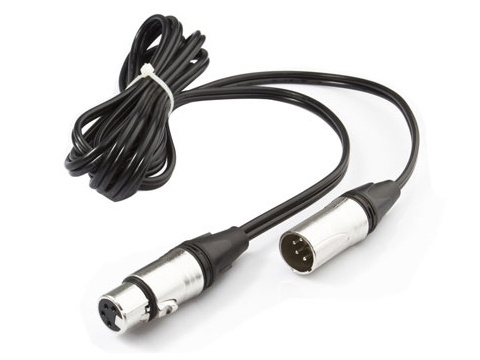

S-7102
4-pin XLR female to male cable, for 4-pin DC adapting output
-
PC-P460S
4x6A Super Fast V-mount Charger
4-ch simultaneous charging with 6A super fast charging current; color LCD screen
We provide 2 years conditional warranty for battery chargers and power adaptors
The following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) Damage caused by input voltage beyond the limited range of AC 100V-240V.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(4) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
