› Charging V-mount batteries
› 2-ch simultaneous charging
› 3A charging current per channel
› LED charging indicators
› Support AC to 4-pin XLR output
› Light weight and portable

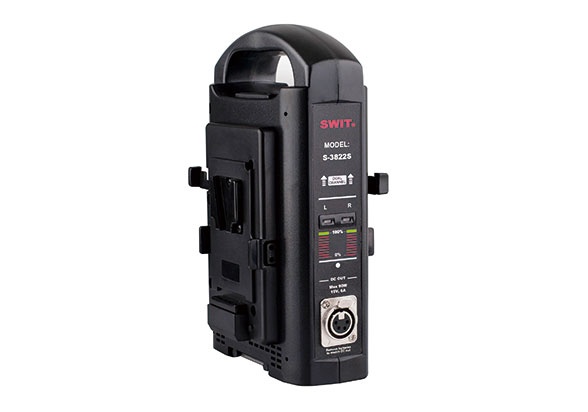

2-ch Simultaneous Charger
Charging current: 3A per channel

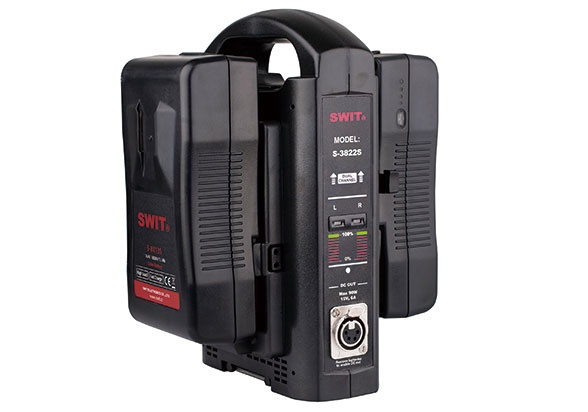

The portable charger S-3822S can charge 2 V-mount batteries simulta-
neously. The charging output is DC 16.8V, 3A×2

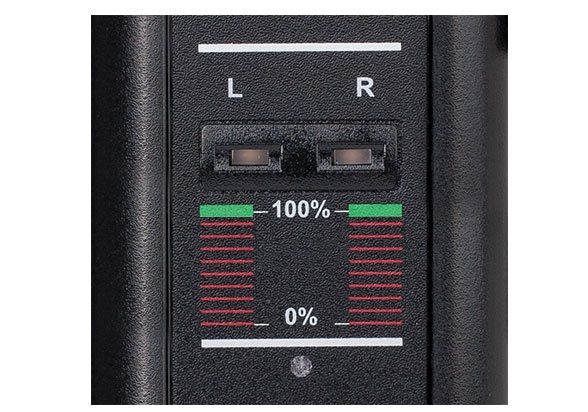

LED Charging Indicators
S-3822S has LED charging indicators on the front panel,
indicates the real time capacity of each channel by different colors:
Red: the battery capacity is below 100%
Green: fully charged
Red flash: the charging may have problem

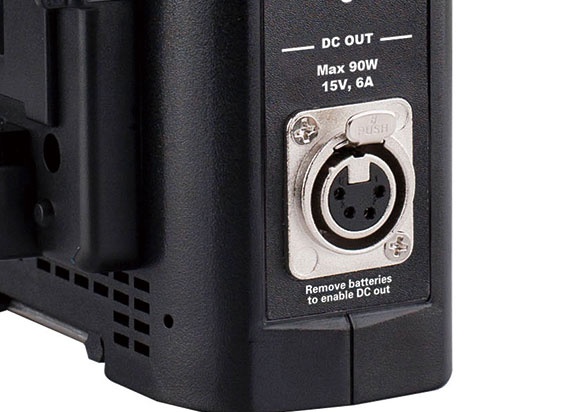

AC-DC Adapting Output
S-3822S has a 4-pin XLR female connector on the front panel.
Connected with SWIT S-7102 XLR female to male cable (optional
purchase), the S-3822S can be used as AC-DC adaptor of DC 15V,
6A, 90W output.
Please note the AC-DC adapting output will not work when battery
is charging.
Input | 100～240VA, 50/60Hz |
Power consumption | Max 136W |
Charging output | DC 16.8V, 3A×2-ch |
Adapting output | DC 15V, 6A |
Operating temperature | -20°C-50°C |
Working humidity | 10%～90% |
Dimensions (without battery mount) | 228mm×140mm×60mm |
| Dimensions (with battery mount) | 228mm×140mm×102mm |
Net weight | Net 1.0kg; With package 1.45kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

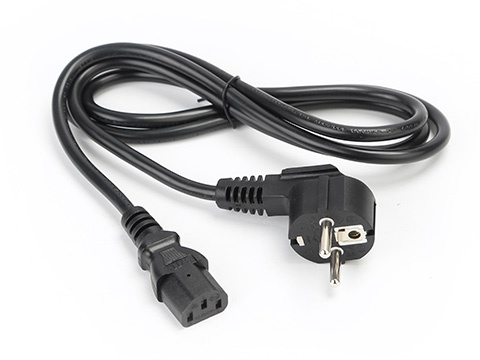

AC power cable
-

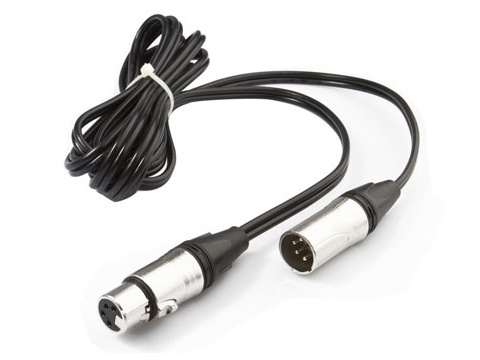

S-7102
4-pin XLR female to male cable, for 4-pin DC adapting output
We provide 2 years conditional warranty for battery chargers and power adaptors
The following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) Damage caused by input voltage beyond the limited range of AC 100V-240V.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(4) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
