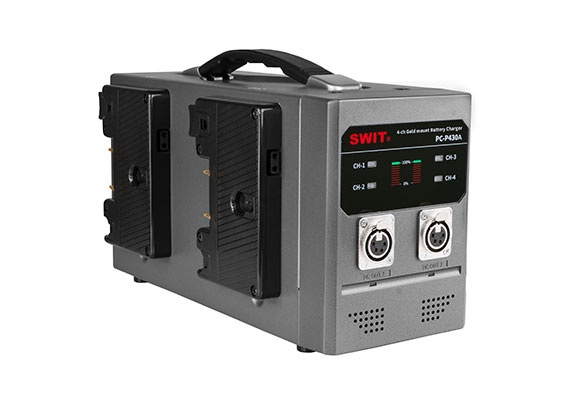

PC-P430A 4-ch Gold Mount Fast Charger
› Gold mount battery charger
› 4-ch simultaneous charging
› 3A fast charging per channel
› 2x 15V/6A 4-pin XLR DC output
› LED charging indicators
4-ch Simultaneous Charger
For Gold mount batteries

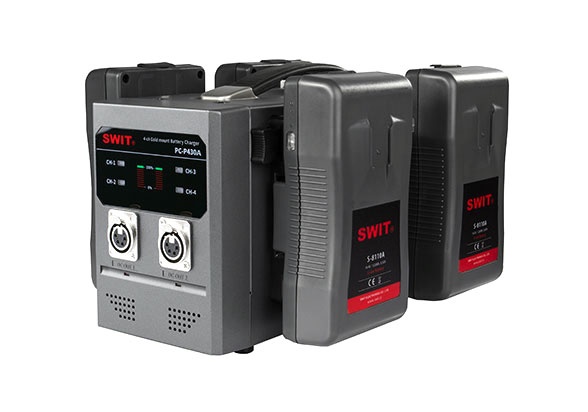

PC-P430A can charge 4pcs Gold Mount
camera batteries simultaneously. The
charging output is DC16.8V, 3A each channel.

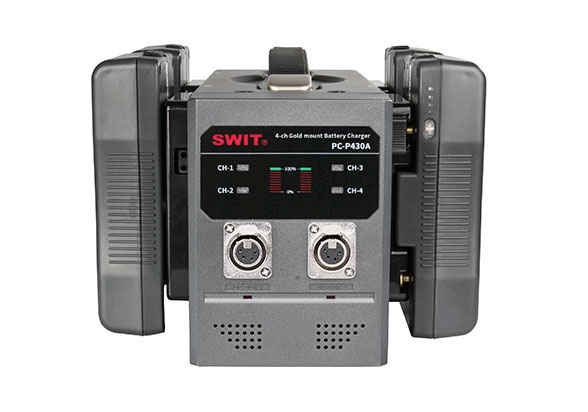

LED Charging Indicators
The PC-P430A has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors:
Display Red: Battery is charging, capacity below 80%;
Display Yellow: Battery is charging, capacity above 80%;
Display Green: Charging finished..
AC-DC Adapting Output
PC-P430A has 2x 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 XLR female to male cable (optional
purchase), the PC-P430A can be used as AC-DC adaptor of 2-ch DC 15V, 6A, 90W simultaneous output.
Please note the AC-DC adapting output will not work when battery is charging.
Power | Max 276W |
Input | AC100V-240V 50/60Hz |
Charging output | DC 16.8V, 3A×4 |
Adapting output | DC 15V, 6A×2 |
Dimensions | 285×144×173mm |
Net weight | 3.27kg; With package 3.8kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

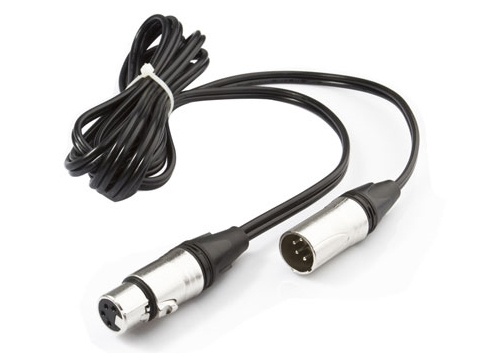

S-7102
4-pin XLR female to male cable, for 4-pin DC adapting output
We provide 2 years conditional warranty for battery chargers and power adaptors
The following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) Damage caused by input voltage beyond the limited range of AC 100V-240V.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(4) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
