› 8-ch simultaneous Gold mount fast charging
› DC16.8V, 6A, 100W for ≥160Wh batteries
› DC16.8V, 3A, 50W for <160Wh batteries
› 2× 3.5-inch color LCD info display
› Battery cycle times display
› Large LED charging indicators
› Wall mounting or 19-inch rack install

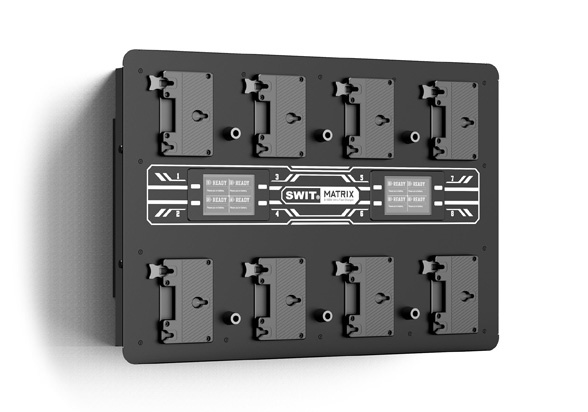

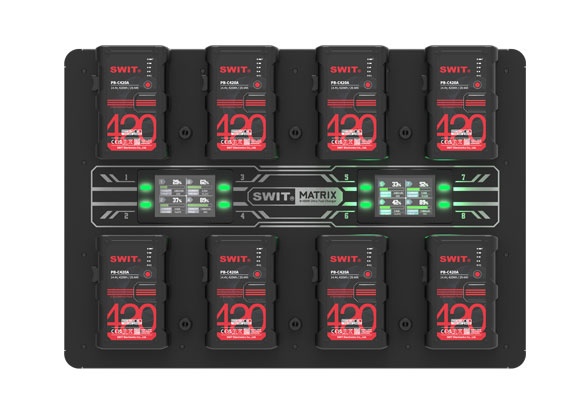

8x100W Ultra Fast Wall Charger
MATRIX-A8 is an 8-ch simultaneous Gold Mount wall charger with 16.8V 6A 100W ultra fast charging speed each channel, which save up to 60% charging time for broadcast TV stations and cine rental house installation.
Charging Time Comparation

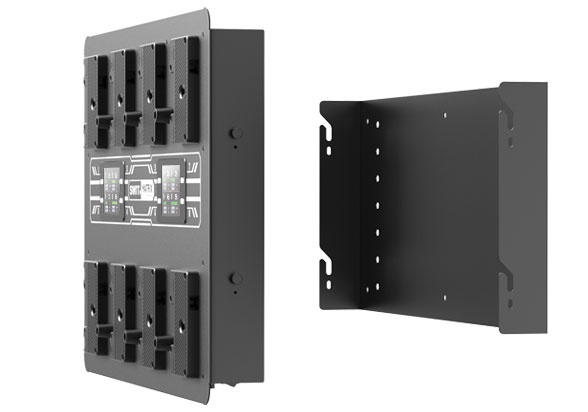

Flexible Wall Mounting Plate
MATRIX-A8 provides with a wall mounting plate on the backside, to be screwed onto the wall, or mounting to standard 19-inch rack bracket.
You can even install the mounting plate onto storage
rack or DIT cart.

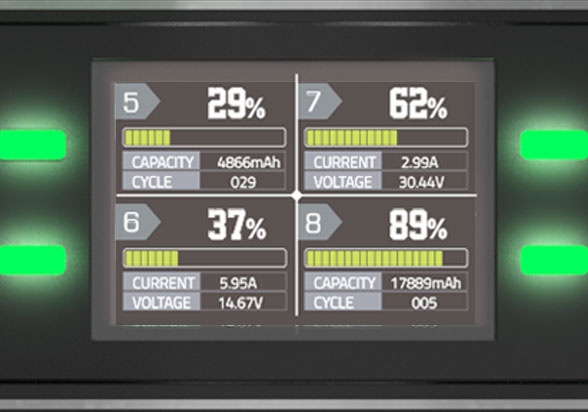

3.5-inch Color LCD and Indicators
MATRIX-A8 provides 2x 3.5-inch color LCD to display charging progress, charging current, voltage, battery cycle times for each channel.
You can also check the charging status by large charging indicators from a distance.
Power | Max 900W |
Input | AC100V-240V 50/60Hz |
Output | DC 16.8V, 6A 100Wx8 (SWIT ≥160Wh batteries) DC 16.8V, 3A 50W×8 (Other batteries) |
Applicable battery | Gold Mount battery |
Dimensions | 630×436×89mm |
Net weight | Net 10.6kg; With package 15.5kg |
MSRP
MSRP
MSRP
-

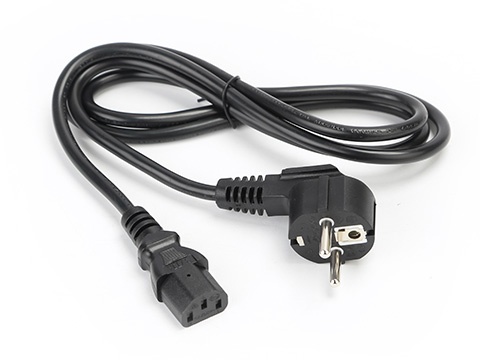

AC power cable
-

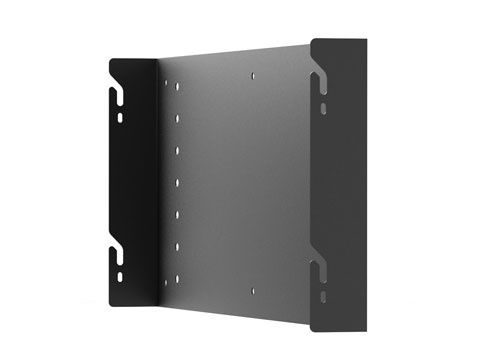

Install Plate
-
PB-S146A
146Wh Multi-sockets Square Digital Battery
Compact designed for Cine-cameras, 200W high load, 2x D-tap, 1x USB, OLED displays remaining time
-
PC-P461A
4x6A Super Fast Gold mount Charger
4-ch simultaneous charging with 6A super fast charging current; color LCD screen
-

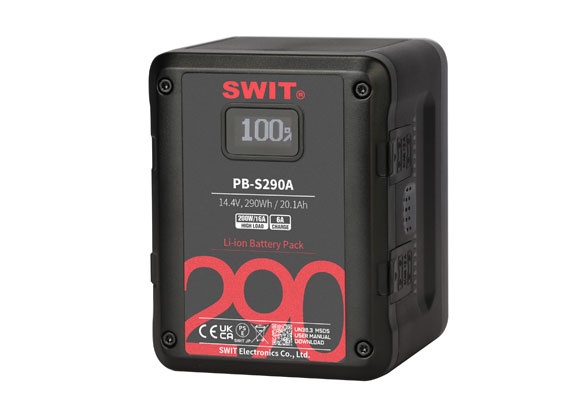

PB-S290A
