› 4-ch simultaneous charging
› 6A charging for SWIT ≥160Wh batteries
› 3A charging for other batteries
› 3.5-inch color LCD info display
› Top large charging indicators

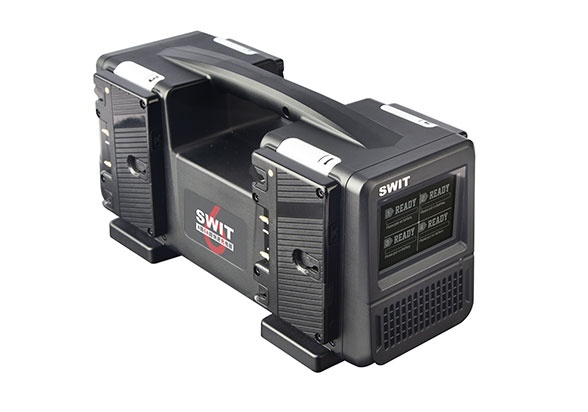

4x6A Super Fast Charger

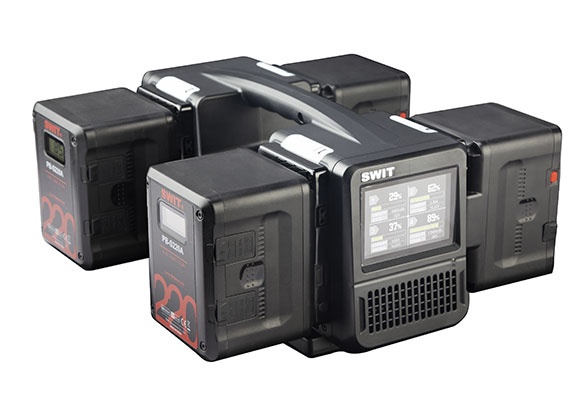

PC-P461A can charge 4 Gold mount batteries simultaneously at Max 6A fast charging current, save up to 60% charging time comparing to normal chargers.
SWIT over 160Wh batteries support 6A fast charging:
PB-R160A, PB-R290A, PB-S220A, S-8183A, S-8180A, S-8113A;
And for other batteries, the charging current will limit to 3A.
Charging Time Comparation

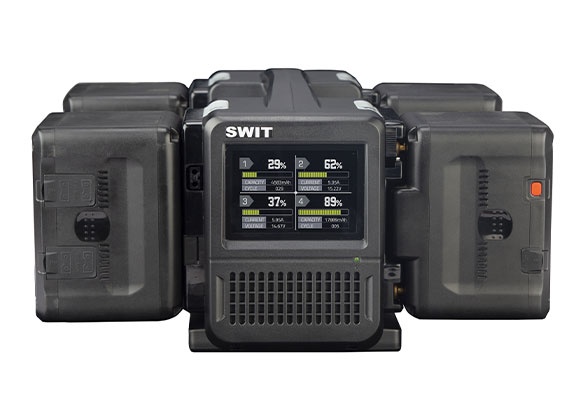

3.5-inch Color LCD Display
PC-P461A provides a 3.5-inch color LCD panel to display charging progress, charging current and voltage.
Top Charging Indicators
Besides LCD screen info, you can check the charging status at a glance by the 4 large size indicators on the top of the charger.
Red on: 0-80%
Green flashing: 81%-99%
Green on: 100% fully charged
Red flashing: Charging error, check LCD info

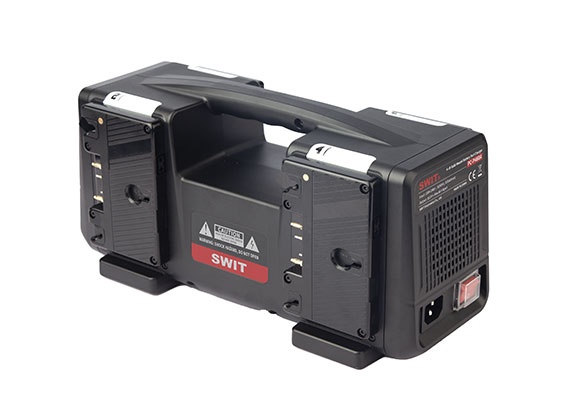

Light Weight and Portable
The 4 channel fast charger PC-P461A has minimized
the size and weight, and the new handle design makes
the charger solid and easy to carry.
Power | Max 450W |
Input | AC100V-240V 50/60Hz |
Output | DC 16.8V, 6Ax4 for SWIT ≥160Wh batteries DC 16.8V, 3A×4 for other batteries |
Applicable battery | Gold mount battery |
Dimensions | 330×135.6×162mm |
Net weight | Net 2.43kg; With package 3.3kg |
MSRP
MSRP
MSRP
-

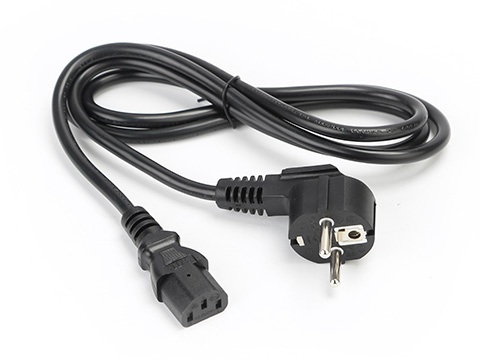

AC power cable
-
S-8183A+
270Wh High Load Gold Mount Battery Pack
High Load Li-ion cells with Max 250W, 20A constant output; D-tap DC output, LED power indicators
We provide 2 years conditional warranty for battery chargers and power adaptors
The following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) Damage caused by input voltage beyond the limited range of AC 100V-240V.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(4) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
