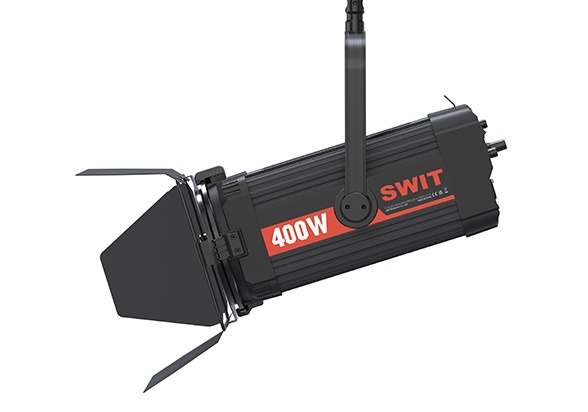

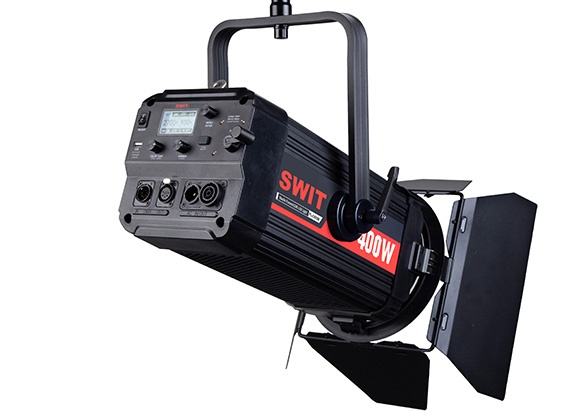

FL-C400D 400W Bi-color Studio COB-LED Fresnel Light

› 400W COB LED Fresnel studio light

› 15-50° Flood/Spot angle adjust

› Optional E-motor adjust spot angle by DMX

› 130,000Lux@1m high bright hard light

› Fresnel and Fly's eye compound lens

› 2700K-6500K continuously adjust

› 0-100% flick-free dimming

› CRI Ra 97, TLCI 99, SSI(D55) 75

› DMX512 In & out dimmer control

› Dimmer/Color Temp/Fan off DMX addresses

› USB power out for wireless DMX receiver

› LCD display menu operation system

› PowerCON TRUE1 AC in and loop out

› 4-leaf metal barn doors and Yoke bracket

Features

400W COB-LED Fresnel Light

High intensity 130,000Lux @ 1m

FL-C400D is a 400W Bi-color COB-LED fresnel light, 130,000Lux @1m high bright, with DMX control, high CRI/TLCI and accurate color performance, for broadcast studio, theatre, film set install applications.



15°-50° Spot/Flood Adjust

FL-C400D outputs 15°- 50° beam angle by adjusting position of LED board internally, 0 to 100% PWM digital dimming, smoothly and non-flickering.



Fresnel and Fly's Eye Lens

FL-C400D is equipped with double side compound lens - front fresnel rings to converge the lights and rear fly's eye array to eliminate yellow halo, and get an even distributed spot light.



2700K-6500K Continuous

FL-C400D COB-LED includes 400W 2700K and 400W 6500K LED, and can be continuously adjusted between 2700K and 6500K. The light outputs 400W at any color temperature.

Accurate Color Render

CRI 97; TLCI 99

CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while FL-C400D offers the ultra high CRI at 97 and TLCI at 99, and will not lose the object original colors.

DMX, AC IN & LOOP

FL-C400D provides 5-pin XLR DMX512 in and out, with a 5V USB-A socket to power wireless DMX receiver, and support PowerCon True1 AC input and loop output for easy cable works when building studio.

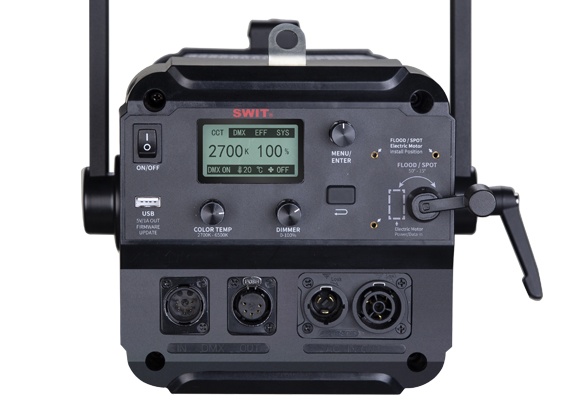

Menu Operating System

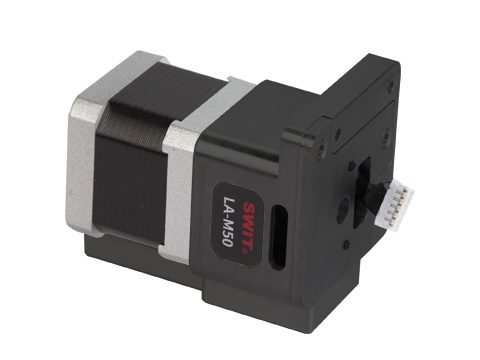

Optional Spot Angle E-motor

FL-C400D supports external electro-motor installed to adjust the spot/flood angle by Menu knob or by DMX control. The optional E-motor is easily user installed (Part number LA-M50).
You can also order the light with factory pre-installed E-motor, SKU model FL-C400DM.

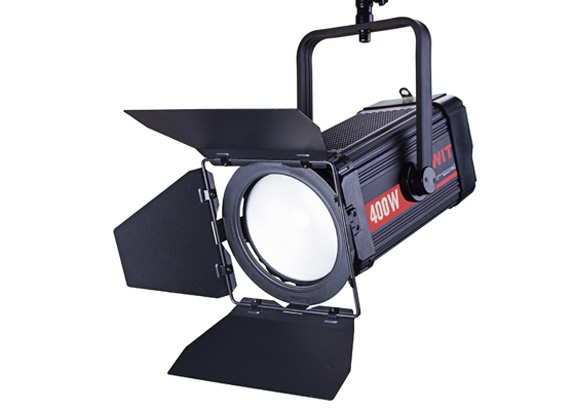

4-leaf Metal Barn Door

FL-C400D is equipped with 4-leaf metal barn doors, dismountable and rotatable.

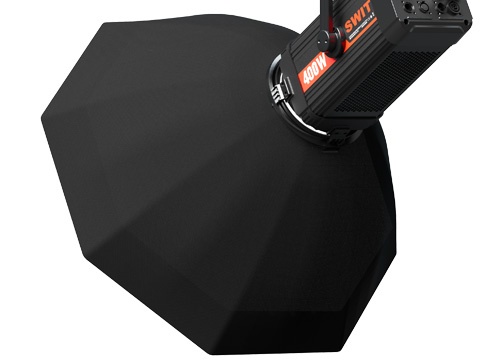

Optional Diffuser Box

Provide Octangle Diffuser Box as optional accessory. Compatible with all 90mm diameter fresnel lights includes SWIT FL-C100, FL-C100D, FL-C200D, FL-C400D, etc, with dual diffuser layers and eggcrate.
Part Number: LA-BC90.

LED

COB Chip-on-board LED

Spot angle

15° - 50° adjust

Illuminance

130,000Lux@1m/Spot

Color Temperature

2700K - 6500K

CRI

97

TLCI

99

Power

400W

USB

5V USB-A power out

DMX

DMX512, 5pin XLR IN & OUT

AC Power

PowerCON TRUE1 AC 100-240V 50/60Hz input & output

Dimension

175×175×400mm

Weight

6.2kg
Basic Package

MSRP

MSRP

MSRP

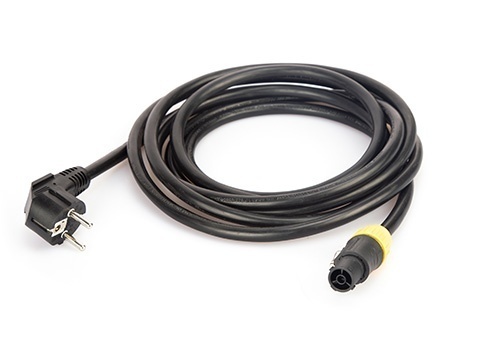

  • PowerCON AC cable

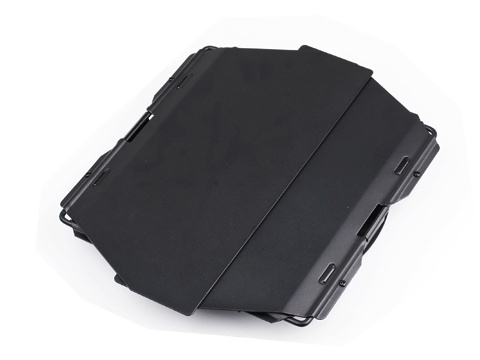

  • Barn door kit

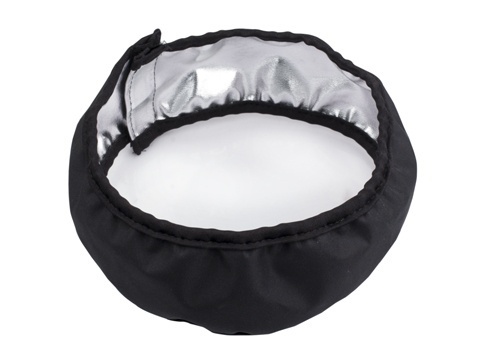

  • Black out cloth

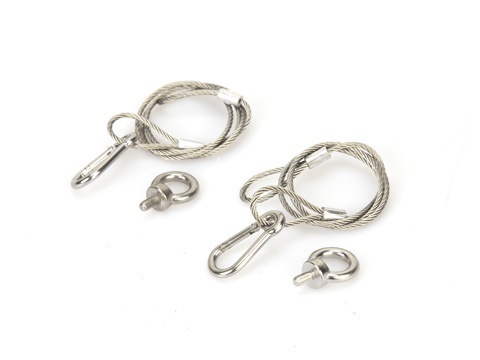

  • Safety rope

  • LA-BC90

    Octangle Diffuser Box with dual diffuser layers and eggcrate, Compatible with all 90mm diameter fresnel lights includes SWIT FL-C100, FL-C100D, FL-C200D, FL-C400D, etc

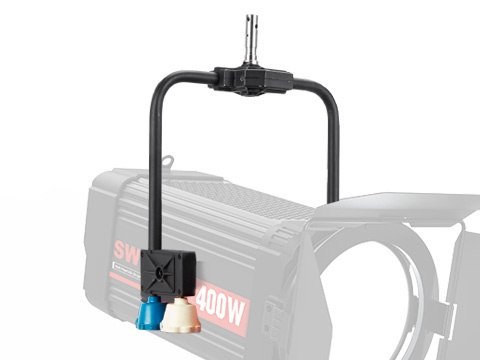

  • LA-POC200

    2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head. Dedicated size for SWIT FL-C200D and FL-C400D studio fresnel lights
  • LA-M50

    Optional Electro-motor to adjust Spot/Flood angle by Menu knob or by DMX. Easy to install by users.
