FL-C200D 200W Bi-color Studio COB-LED Fresnel Light

› 200W COB LED Fresnel studio light

› 15-50° Flood/Spot angle adjust

› Optional E-motor adjust spot angle by DMX

› 65,000Lux@1m high bright hard light

› Fresnel and Fly's eye compound lens

› 2700K-6500K continuously adjust

› 0-100% flick-free dimming

› Preset simulated light effects

› CRI Ra 97, TLCI 99, SSI(D55)75

› DMX512 In & out dimmer control

› Dimmer/Color Temp/Fan off DMX addresses

› USB power out for wireless DMX receiver

› LCD display menu operation system

› PowerCON TRUE1 AC in and loop out

› 4-leaf metal barn doors and Yoke bracket

Features

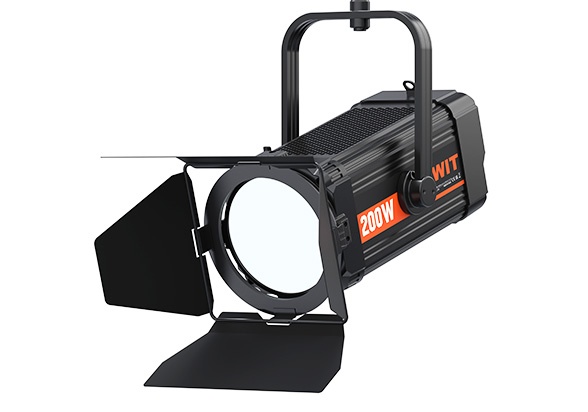

200W COB-LED Fresnel Light

High intensity 65,000Lux @ 1m

FL-C200D is a 200W Bi-color COB-LED fresnel light, 65,000Lux @1m high bright, with DMX control, high CRI/TLCI and accurate color performance, for broadcast studio, theatre, film set install applications.



15°-50° Spot/Flood Adjust

FL-C200D outputs 15°-50° beam angle by adjusting position of LED board internally, and supports optional E-motor to adjust spot angle by DMX. 0 to 100% PWM digital dimming, smoothly and non-flickering.



Fresnel and Fly's Eye Lens



FL-C200D is equipped with double side compound lens - front fresnel rings to converge the lights and rear fly's eye array to eliminate yellow halo, and get an even distributed spot light.

2700K-6500K Continuous

FL-C200D COB-LED includes 200W 2700K and 200W 6500K LED, and can be continuously adjusted between 2700K and 6500K. The light outputs 200W high intensity at any color temperature.

Accurate Color Render

CRI 97; TLCI 99

CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while FL-C200D offers the ultra high CRI at 97 and TLCI at 99, and will not lose the object original colors.

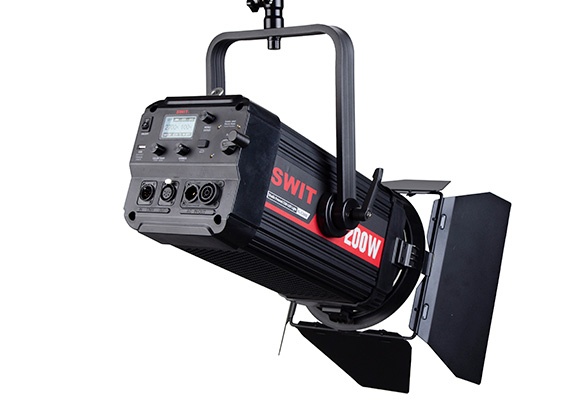

DMX, AC IN & LOOP

FL-C200D provides 5-pin XLR DMX512 in and out, with a 5V USB-A socket to power wireless DMX receiver, and support PowerCon True1 AC input and loop output for easy cable works when building studio.

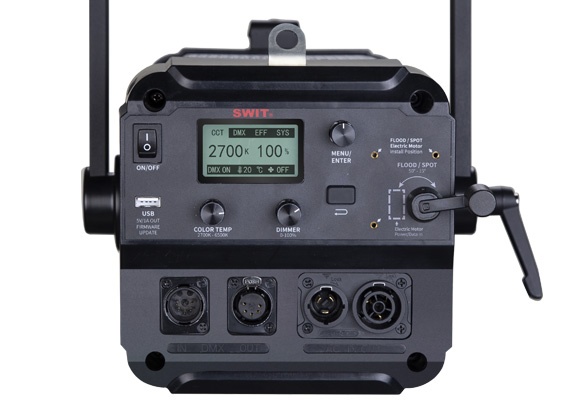

Menu Operating System



Optional Spot Angle E-motor

FL-C200D supports external electro-motor installed to adjust the spot/flood angle by Menu knob or by DMX control. The optional E-motor is easily user installed (Part number LA-M50).
You can also order the light with factory pre-installed E-motor, SKU model FL-C200DM.

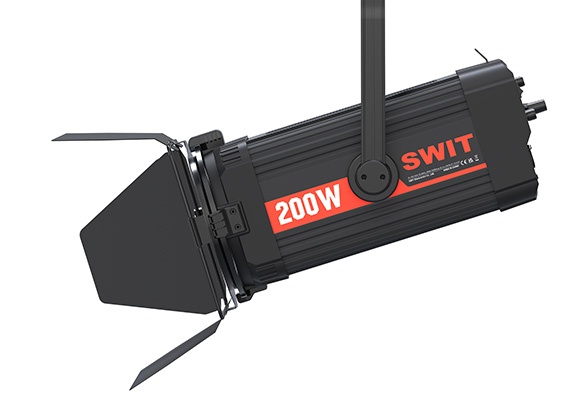

4-leaf Metal Barn Door

FL-C200D is equipped with 4-leaf metal barn doors, dismountable and rotatable.

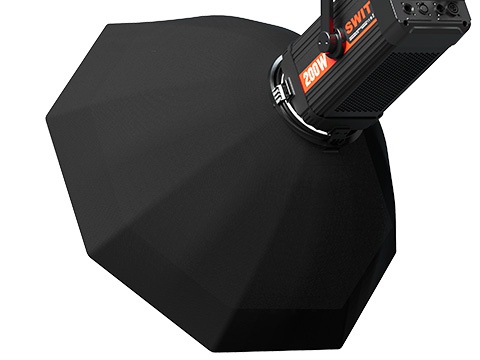

Optional Diffuser Box

Provide Octangle Diffuser Box as optional accessory. Compatible with all 90mm diameter fresnel lights includes SWIT FL-C100, FL-C100D, FL-C200D, FL-C400D, etc, with dual diffuser layers and eggcrate.
Part Number: LA-BC90.

LED

COB Chip-on-board LED

Spot angle

15° - 50° adjust

Illuminance

65,000Lux@1m/Spot

Color Temperature

2700K - 6500K

CRI

97

TLCI

99

Power

200W

USB

5V USB-A power out

DMX

DMX512, 5pin XLR IN & OUT

AC Power

PowerCON TRUE1 AC 100-240V 50/60Hz input & output

Dimension

175×175×400mm

Weight

6.2kg
Basic Package

MSRP

MSRP

MSRP

  • PowerCON AC cable

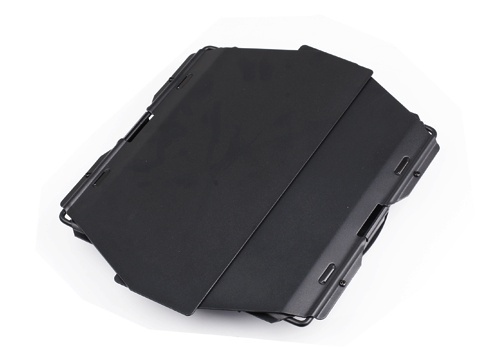

  • Barn door kit

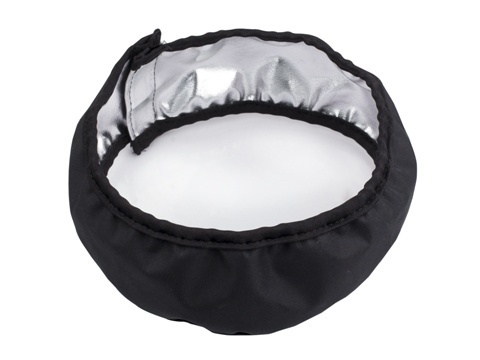

  • Black out cloth

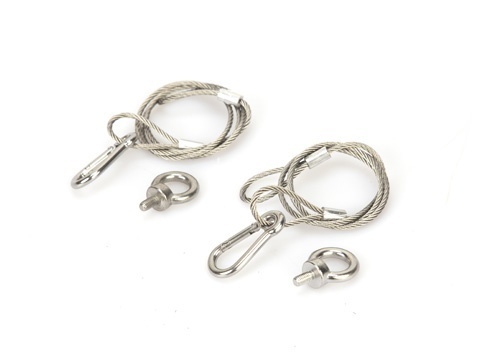

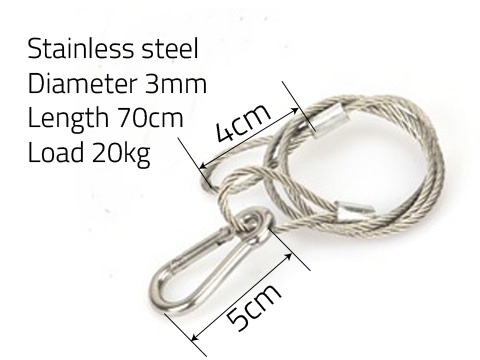

  • Safety rope

  • LA-BC90

    Octangle Diffuser Box with dual diffuser layers and eggcrate, Compatible with all 90mm diameter fresnel lights includes SWIT FL-C100, FL-C100D, FL-C200D, FL-C400D, etc

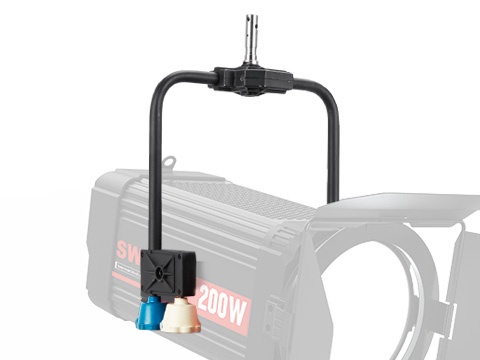

  • LA-POC200

    2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head. Dedicated size for SWIT FL-C200D and FL-C400D studio fresnel lights

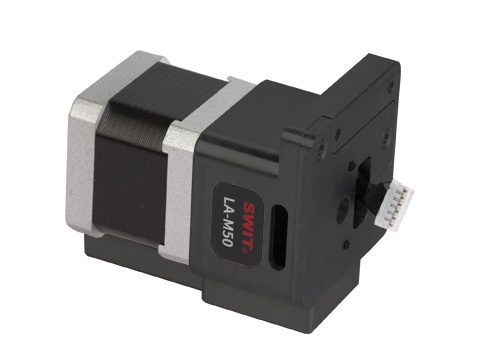

  • LA-M50

    Optional Electro-motor to adjust Spot/Flood angle by Menu knob or by DMX. Easy to install by users.
  • FL-C60D

    60W Bi-color Fresnel COB-LED Light

    25000Lux super bright, 15°-60° beam angle, 2700K-8000K adjust, Super high CRI 95, TLCI 97, silent mode, DMX control

    $8222
  • FL-C100D

    100W Bi-color Fanless Studio Fresnel Light

    COB-LED, 12-26° adjust, 55,000Lux@1m, 2700-6500K, CRI 97, TLCI 99, no fan, no noise

  • FL-C400D

    400W Bi-color Studio COB-LED Fresnel Light

    15-50° adjust, optional E-motor, 130,000Lux@1m, CRI 97, TLCI 99
