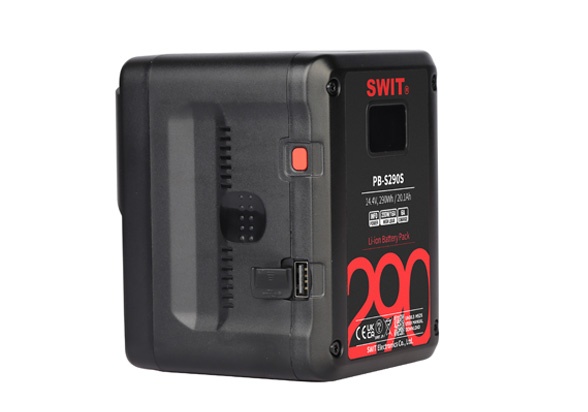

PB-S290S 290Wh Multi-sockets Digital Battery Pack

› Square shape design for Cine-cameras

› 290Wh, 20.1Ah large capacity

› At least 200W, 16A constant load

› 4× D-tap output sockets

› All 4x D-tap support charging input

› 1× USB 5V/2A power output sockets

› 100W 6A super fast charging

› OLED display accurate remaining run time

› Display power info in both SONY & RED

› Multiple circuit protections


Features

Square shape design for Cine-cameras

PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.

290Wh / 20.1Ah Capacity

Consists of 24pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 290Wh / 20.1Ah high capacity. Can run approx 10 hours for normal ENG cameras and approx 3.5 hours for ARRI ALEXA.

High Load for Cine Cameras

At least 200W / 16A load

PB-S290S provides at least 200W/16A high load even at 1% power, to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output.

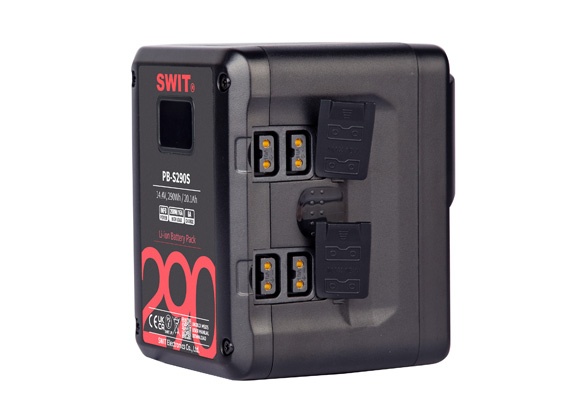

4× D-tap, 1× USB

PB-S290S provides 4x D-tap output sockets with 10A/120W load, and all of them support charging input. The USB-A socket output 5V/2A.

100W 6A Fast Charging

Using SWIT 6A fast charger

PB-S290S supports 6A fast charging by SWIT PC-P461S or S-3812S fast charger, to save more than 50% charging time. The 290Wh PB-S290S battery can be charged from 0 to 80% after 2.5 hours, and fully charged within 3.8 hours.

Digital Power Info

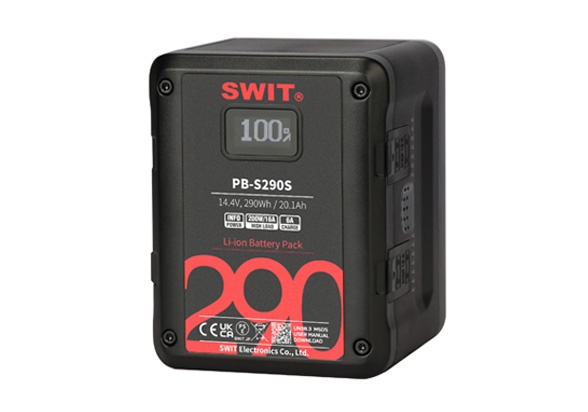

OLED display accurate remaining run time

The build-in OLED can displays remaining power percentage, remaining working time, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.

Battery Protection Display

When any over load, over charging, short circuit, high/low temperature detected, the battery will protect itself and display protection information. You can take steps to re-active battery, to ensure the best battery condition and prolong battery life.

Model

PB-S290S

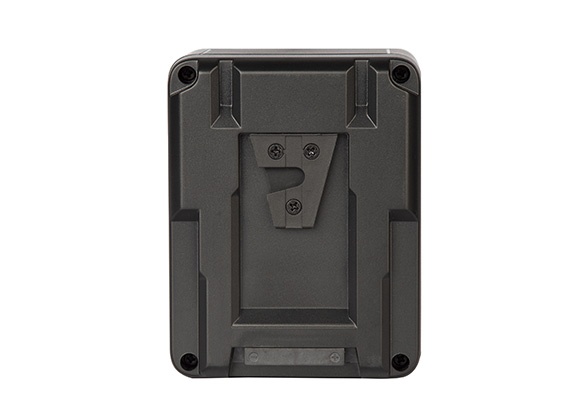

Battery plate

V-mount

Nominal voltage

14.4V

Capacity

290Wh, 20.1Ah

Max output

In total: 200W

Electrodes: 200W,16A

USB:10W, 5V/2A
D-tap: 120W / 10A

Dimension

121×95×96mm

Charging Temperature

0-40°C

Discharging Temperature

-20°C-50°C (Capacity and Max Load may decrease when operating below 0°)

Net weight

1.44kg

Max charging current

6A

D-TAP socket number

4

USB socket number

1
