› 1152pcs ultra bright long-life LEDs
› Surface mounted LED technology
› 70° wide beam angle with diffuser
› 3200K-5600K continuously adjustable
› 100W power, 2500Lux @ 1meter
› 10%-100% flick-free dimming
› Super high CRI Ra 93, TLCI 97
› DMX512 controlled color and dimmer
› LCD display color and dimmer value
› Power by V-mount battery or AC-DC adaptor
› 4-leaf metal barn doors
› Strong all-metal housing
› U-shape support and lighting tripod mount
1152pcs Surface Mounted LEDs
Area light, soft and glareless
S-2430C is a studio panel LED light, with surface mounted
LED technology, includes 1152pcs ultra bright LEDs. The
build-in diffuser generates an equally spread area light of
70° effective wide beam angle, which is an ideal light
source for broadcast studio and field video productions.
Bi-color temperature
3200K-5600K continuously adjustable
S-2430C alternated with 5600K and 3200K LEDs, and the output color temperature can be continuously adjustable between 3200K
and 5600K.
2500 Lux @ 1 meter
10-100% flick-free dimming
S-2430C outputs 100W power, feeds 2500Lux luminance at
1 meter distance (center), supports 10% to 100% PWM digital
dimming, smoothly and non-flickering.
High Color Reveal Ability
CRI Ra 93; TLCI 97
CRI (Color Rendering Index) is a measure of the ability of a light source
to reveal the colors of various objects faithfully in comparison with a
natural light source. And TLCI (Television Lighting Consistency Index) is
special for the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while S-2430C offers the
super high CRI at 93 and TLCI at 97, and will not lose the object original
colors.
DMX512 Control
Dimmer and Color temperature
S-2430C adopts standard 5-pin DMX in/out port, supports
DMX512 protocol, and adjusts dimmer and color temperature
by DMX controller.
The dimmer and color temperature occupy 1 DMX address
respectively.

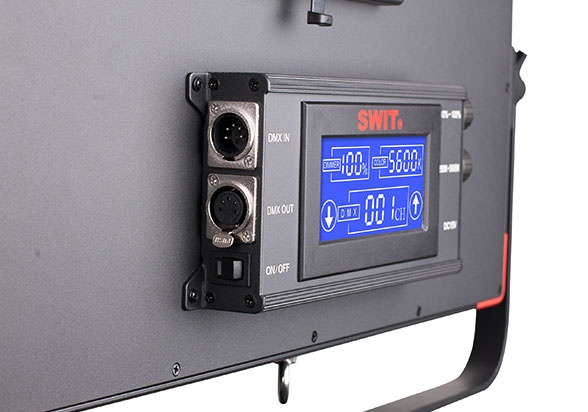

LCD screen display
Dimmer / color temperature value, DMX address

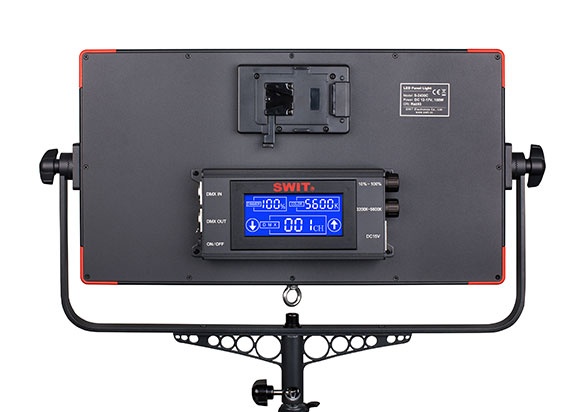

The rear LCD screen can display the current
dimmer percentage, color temperature value,
and supports touch control to set DMX address.
DC 12-17V Power Supply
By V-mount battery / AC-DC adaptor
S-2430C supports 12-17V 4-pin XLR DC input, and
equipped with a battery plate to power by V-mount
battery, or powered by AC-DC adaptor.
The AC-DC adaptor is supplied with a V-wedge, so
that you can fix the adaptor onto V-mount plate of
the light.

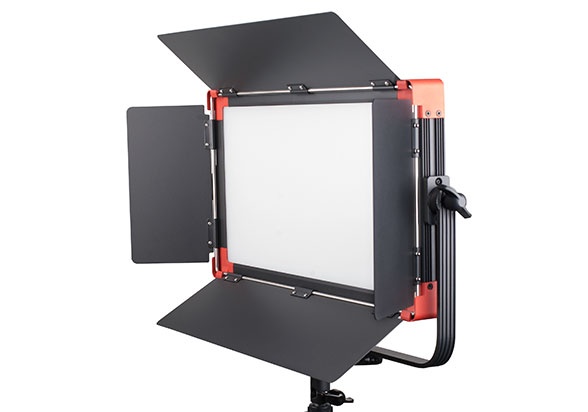

4-leaf Metal Barn Door
Easy to disassemble
S-2430C has all-metal housing, and equipped with a 4-leaf metal
barn door, snap on install, and easy to disassemble.

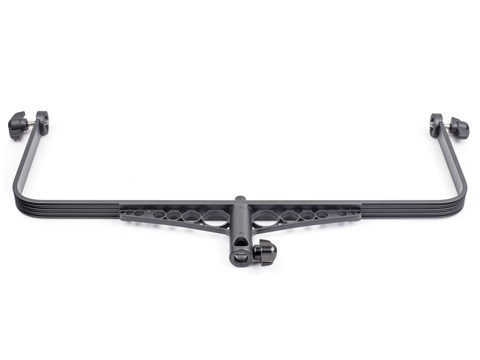

U-shape Bracket
Dual security rope
S-2430C supplied with a U-shape bracket for
lighting tripod install or celling hanging install.
The product package provides 2x steel security
rope for both light body and U-shape bracket.
LED | 1152pcs SMD LEDs |
illuminance | 2500Lux @ 1m |
Beam angle | 70°(50% bounded) |
Color Temperature | 5600K±300K ～ 3200K±200K |
CRI | 93 |
TLCI | 97 |
Power | 100W |
Working voltage | DC12V～17V |
Dimension | 630×440×83mm |
Lighting area | 477×237mm |
weight | Net 5.8kg; With package 10.8kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

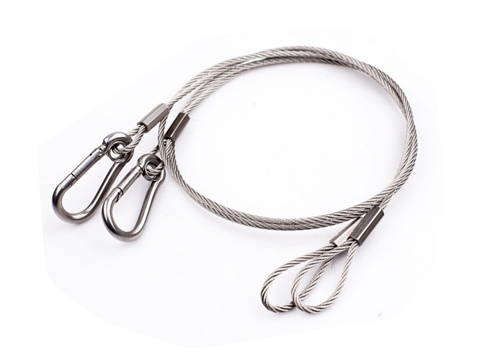

Safety Rope x2
-

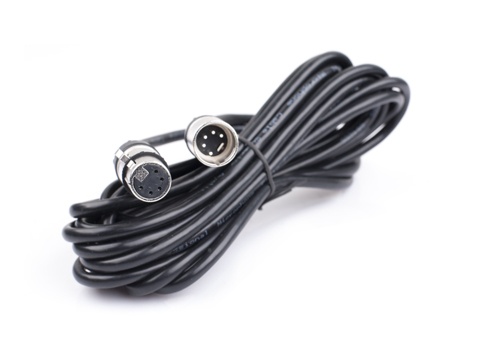

5-pin DMX cable
-

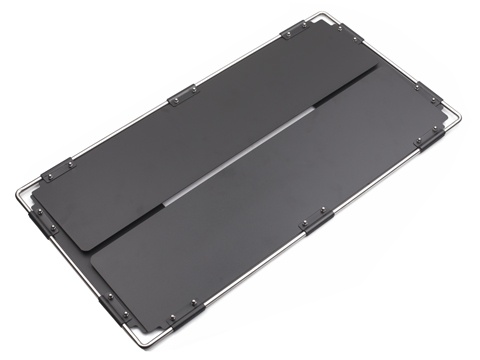

Barn door kit
-
AC-DC Adaptor
-
U bracket
We provide 1 year conditional warrant for light products.
The following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual's instructions, or disassemble, repair without authorization of SWIT.
(2) Any damage caused by powering the product with third-party power adaptors.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(4) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
