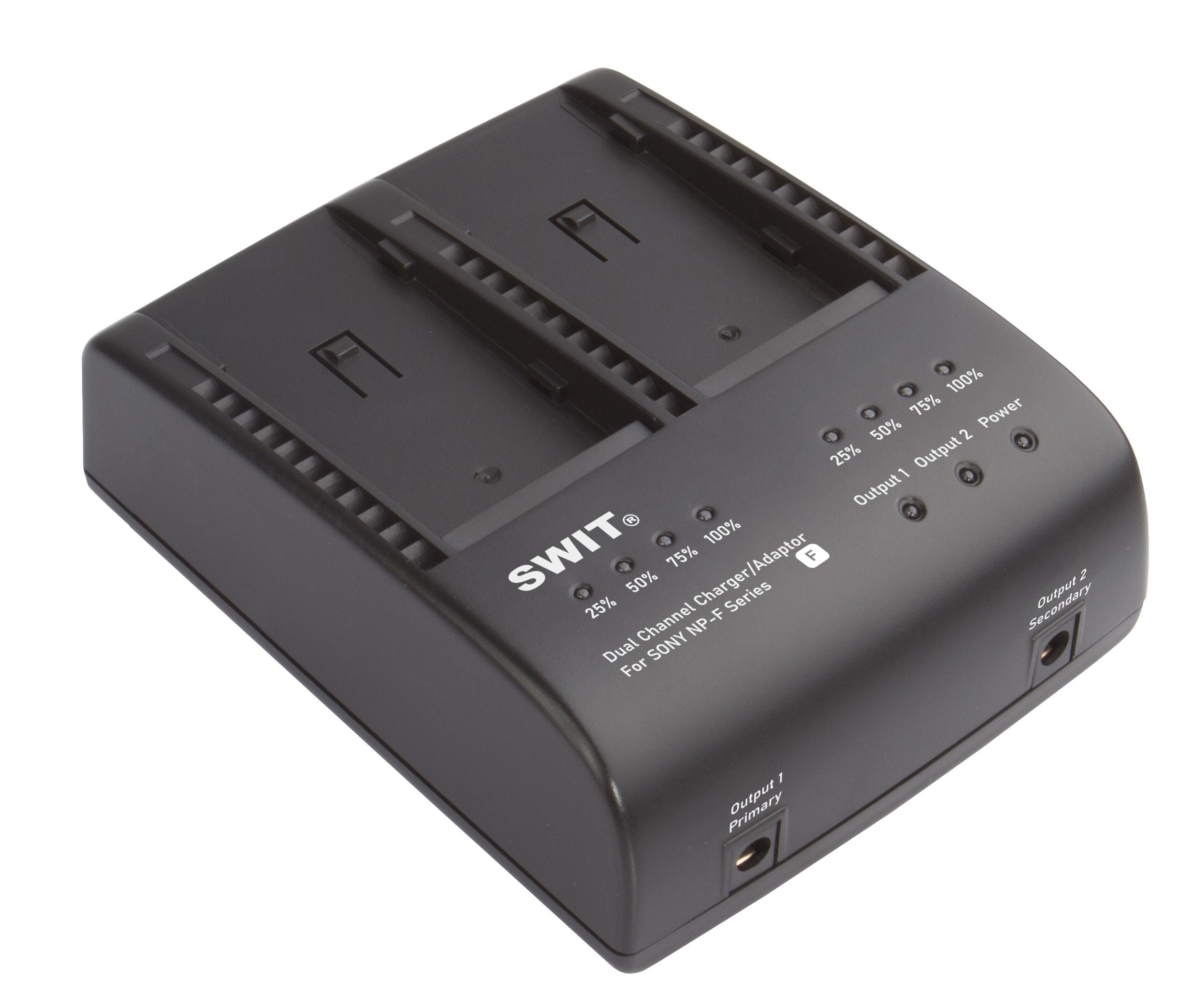

S-3602F 2-ch SONY NP-F Charger and Adaptor
› Charger for SWIT S-8975/8972/8970/8770 battery
› 2-ch simultaneous charging
› Compatible with SONY L series DV batteries
› 2 DC adapting output sockets
› 4-level LED charging indicators
SONY L series (NP-F) DV battery Charger

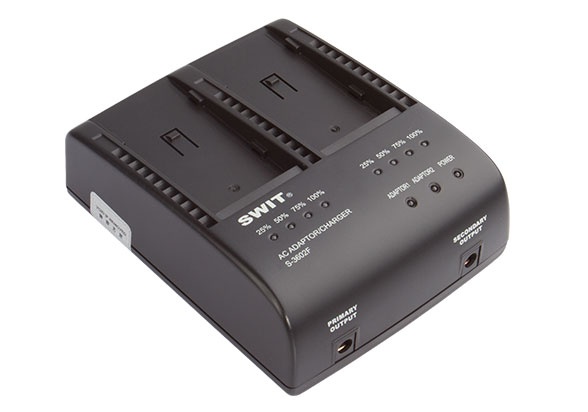

S-3602F is a dual channel charger for SWIT
S-8972, S-8970, S-8770, and compatible with
SONY L series NP-F970/770 DV batteries.

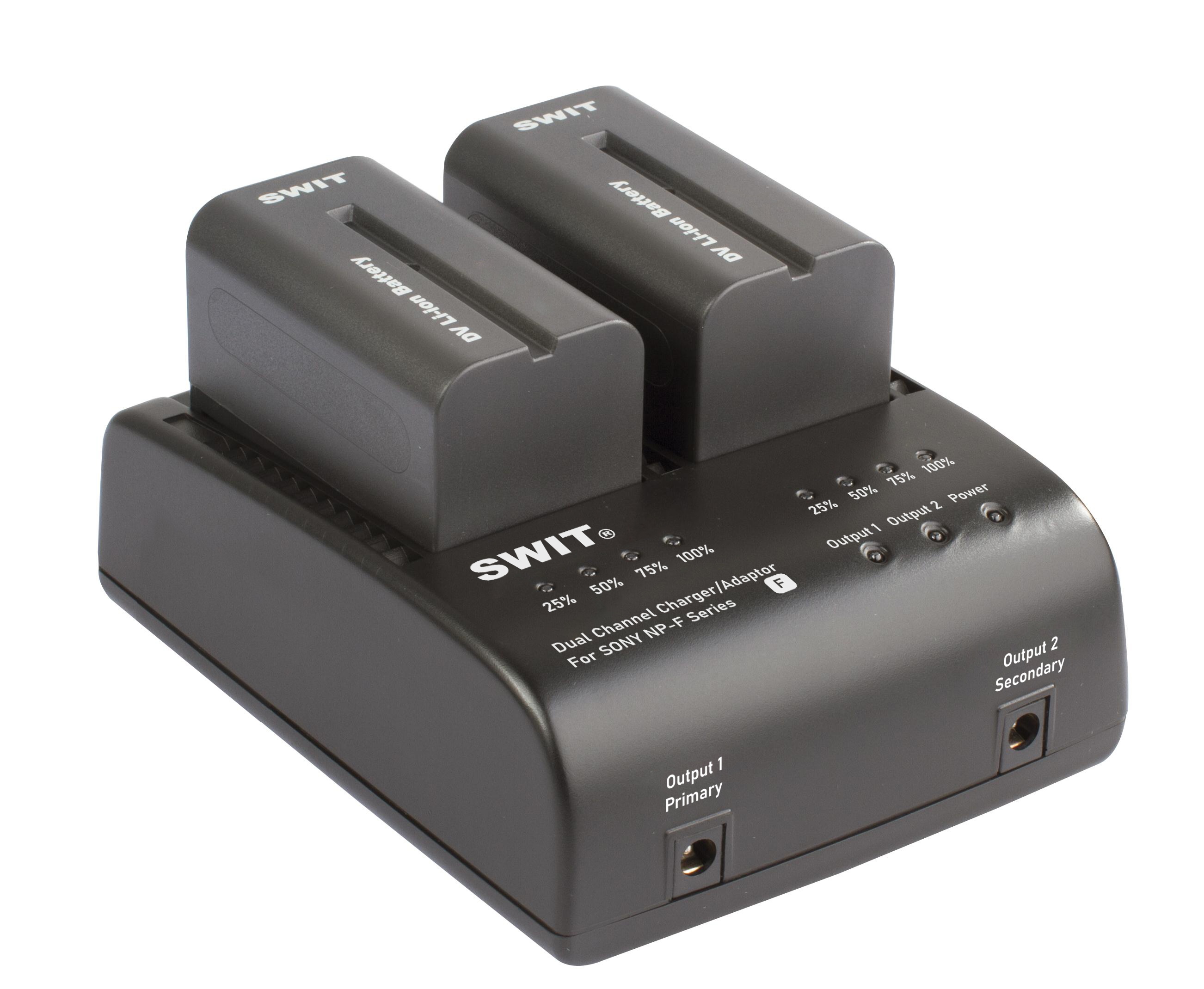

Dual Channel Simultaneous Charging

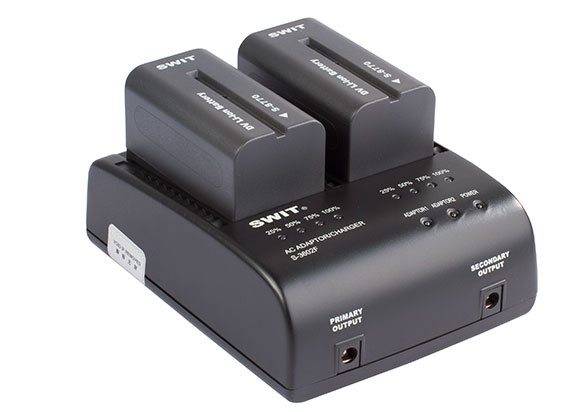

S-3602F has 2 charging channels, with DC 8.4V, 1.8A
charging output for each channel, and can charge 2
batteries simultaneously.
The 4-level LED charging indicators are provided for
each channel, which indicate the real time capacity by
percentage when charging.

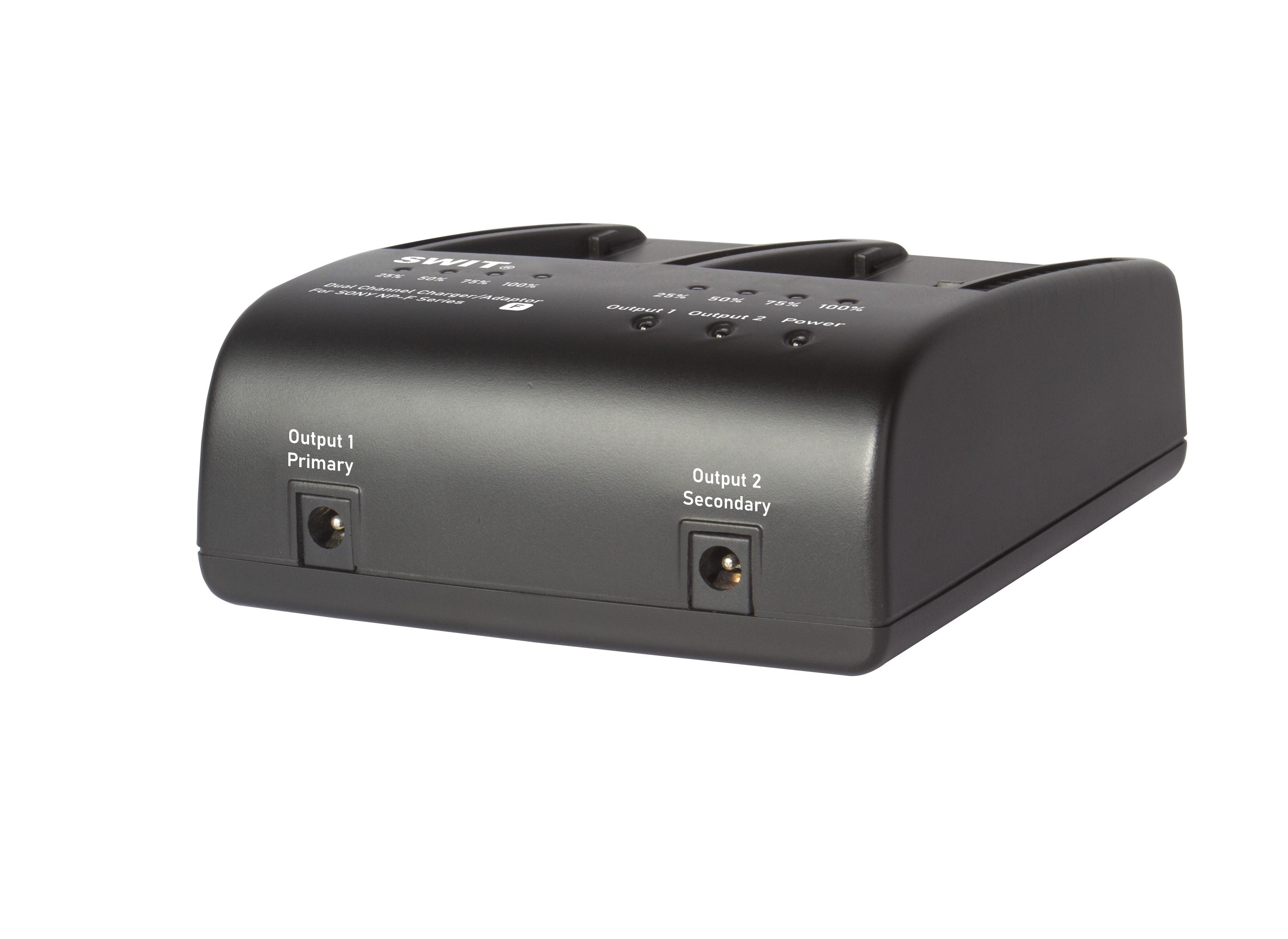

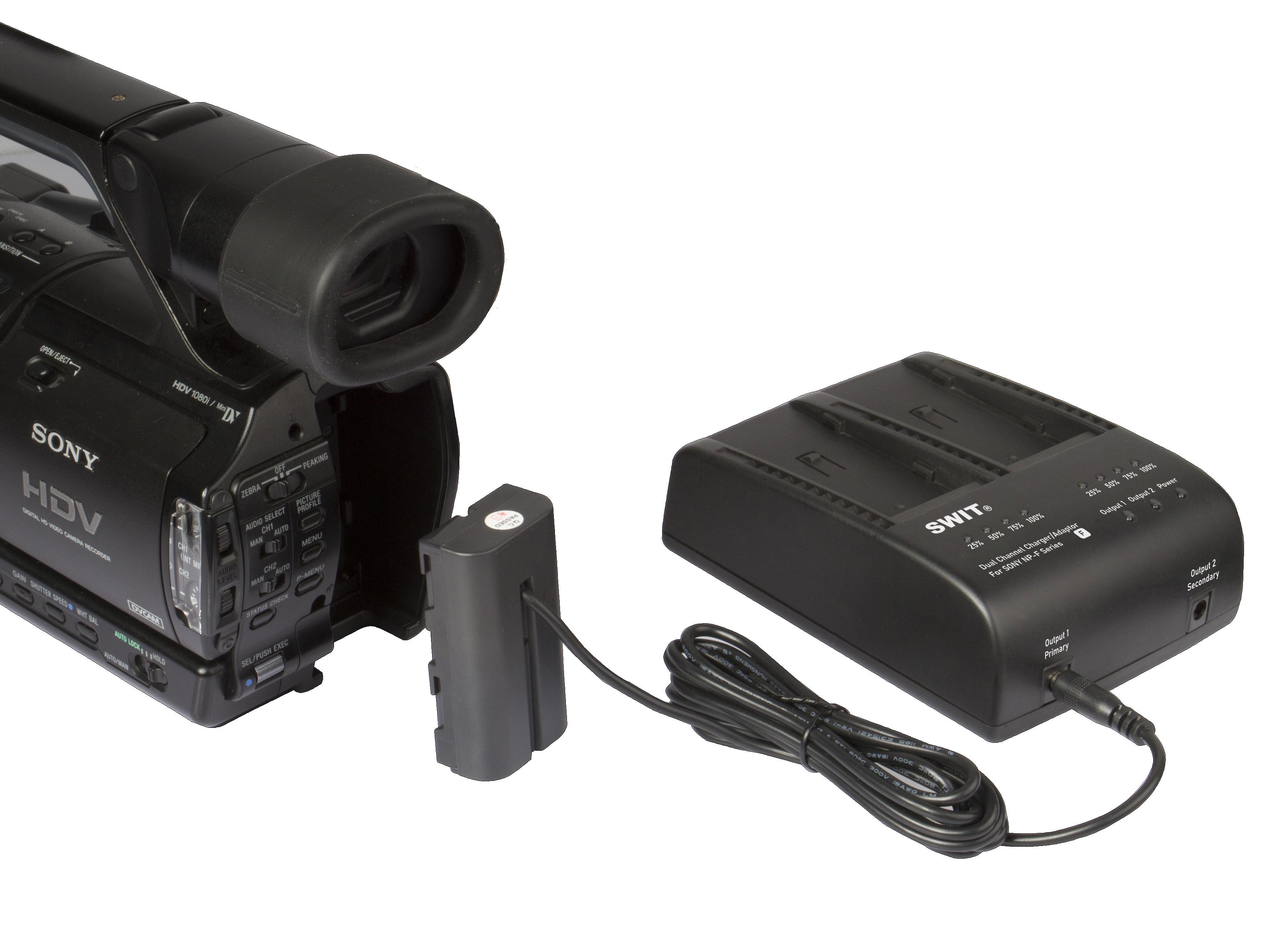

AC-DC Adapting Output

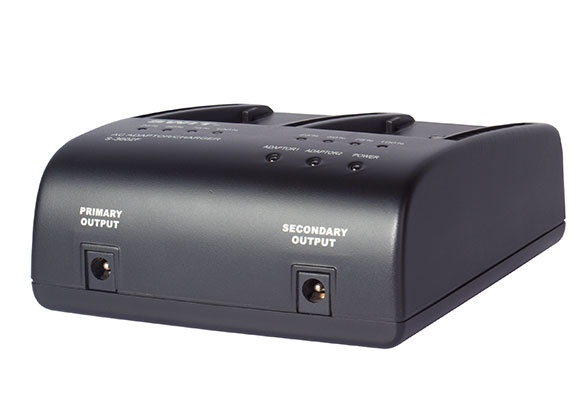

S-3602F has 2x 5.5mm/2.1mm pole sockets for DC adapting output. The DC outputs work

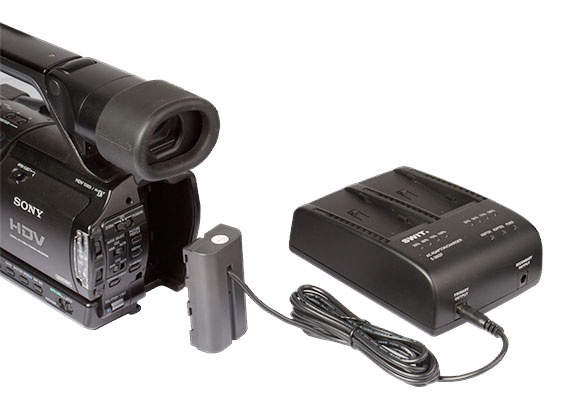

simultaneously and provides DC 8.4V, 3.5A in total. Optional accessory: S-7500F dummy
SONY L series battery adaptor for adapting SONY DV cameras that use L series
batteries, or the equipments with SONY L series battery mounts.
Power input | AC 100V-240V 50/60Hz |
Charging output | DC 7-8.4V, 1.8A×2 |
Adapting output | DC 8.4V, 3.5A |
Applicable battery | S-8972, S-8970, S-8770 |
SONY L series NP-F770/970/960/950 | |
Applicable camera | SONY HVR-V1E, HVR-Z1E/Z7E, etc |
Dimensions | 136×110×47mm |
Net weight | Net 0.36kg; With package 0.65kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

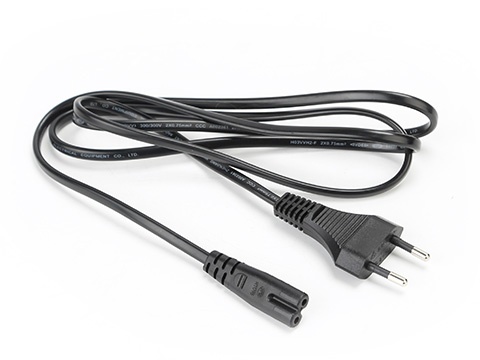

AC power cable
-

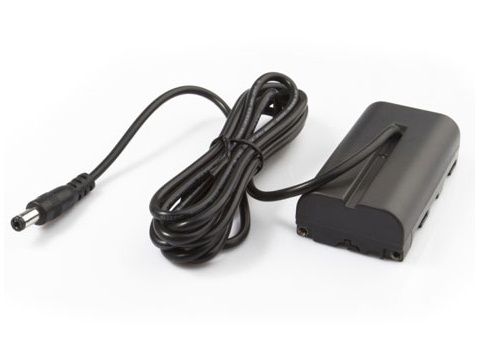

S-7500F
SONY NP-F Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, SONY NP-F970/770 fit -

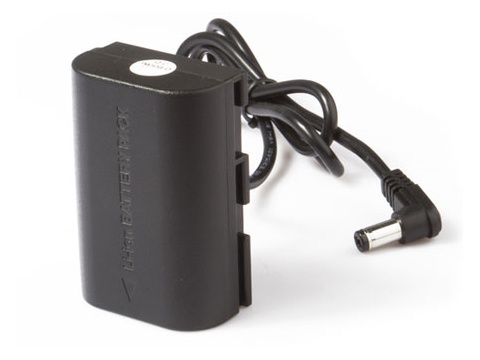

S-7500E
Canon LP-E6 Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Canon LP-E6 fit -

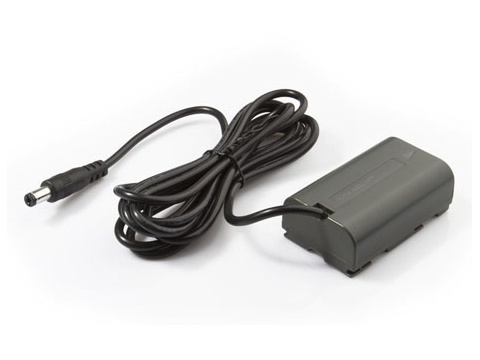

S-7500P
Panasonic Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Panasonic CGA-D54, VW-VBD58, AG-VBR59 fit -

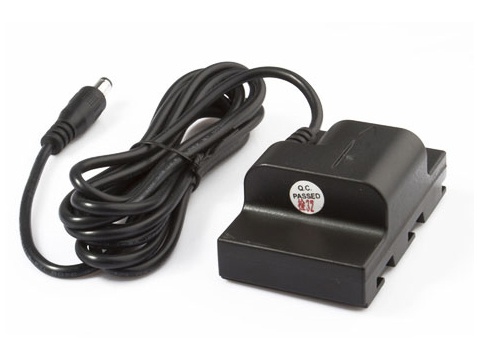

S-7500i
JVC SSL Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, SSL-JVC50 type fit -

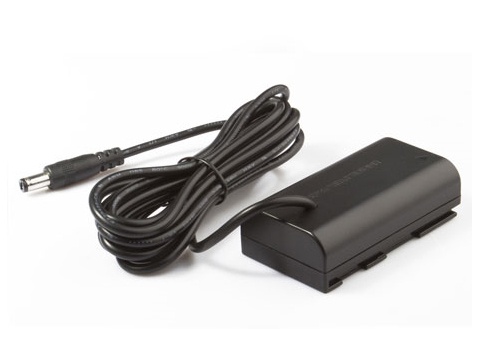

S-7500C
Canon BP Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Canon BP-945 BP-970G fit
We provide 2 years conditional warranty for battery chargers and power adaptors
The following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) Damage caused by input voltage beyond the limited range of AC 100V-240V.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(4) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
