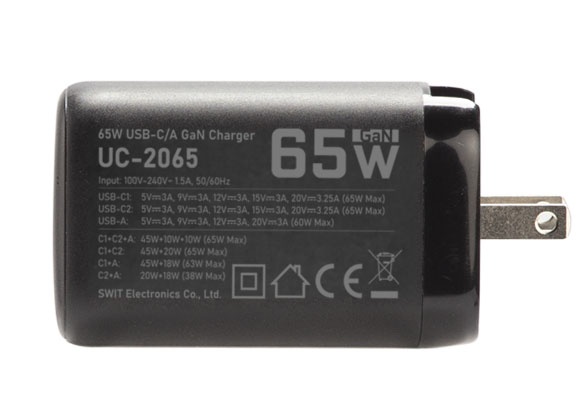

UC-2065 65W USB-C/A GaN Travel Charger
› Mini size GaN charger
› 2x USB-C and 1x USB-A simultaneous
› Max 65W power output
› Charge camera batteries with USB-C ports
› Charge Laptops, Tablets and Smart devices
› US/EU/UK interchangeable travel plugs
› Provide 1x USB-C to C cables
65W GaN Portable Charger
UC-2065 is a USB-C & A travel charger with GaN (Gallium Nitride) tech which is physically smaller and lighter weight than regular silicon chargers, and able to conduct far higher power and keeps heat to a minimum.

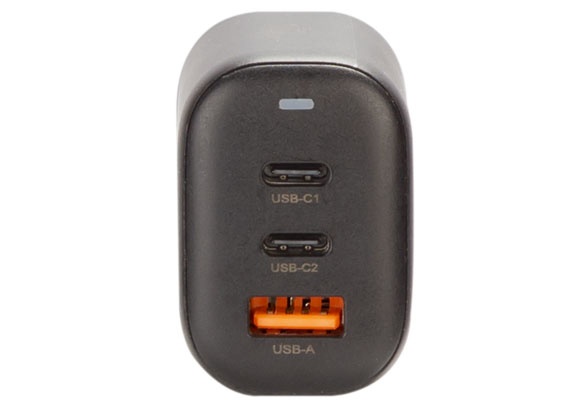

2× USB-C + 1× USB-A Outputs
UC-2065 charger provides 2x USB-C and 1x USB-A ports
simultaneous out. The power output of each port would
be limited if multiple ports are used together, Max 65W.
Single USB-C1 65W, USB-C2 65W, USB-A 60W;
C1+C2 = 45W+20W;
C1+A = 45W+18W;
C2+A = 20W+18W;
C1+C2+A = 45W+10W+10W
Charge Camera Batteries
The following V-mount / B-mount batteries
with USB-C port can be fully charged at:
V-mount OMNI-50S (50Wh): 2h 30m
V-mount OMNI-99S (99Wh): 2h 45m
V-mount MINO-S70 (70Wh): 2h 30m
V-mount MINO-S140 (140Wh): 3h 30m
V-mount MINO-S210 (210Wh): 5h

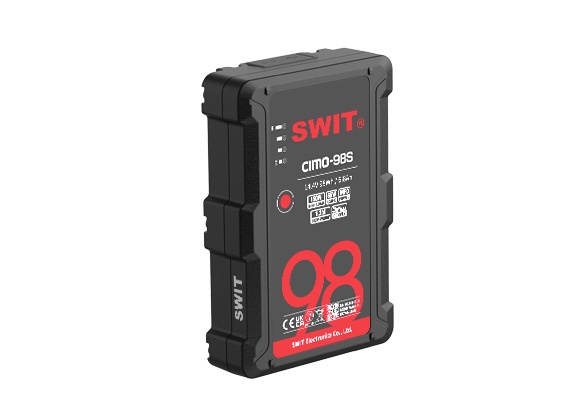

V-mount CIMO-98S (98Wh): 2h 30m
V-mount CIMO-160S (160Wh): 4h
V-mount CIMO-200S (196Wh): 4h 30m
V-mount CIMO-290S (290Wh): 6h 40m
B-mount HB-A290B (290Wh): 6h 40m
Charge Camera Batteries
The following DV batteries with USB-C port
can be fully charged at:
SONY BP-U type LB-SU90C (90Wh): 2h
SONY NP-F type LB-SF65C (65Wh): 2h 30m
Panasonic VBR59 LB-PD65C (65Wh): 2h 30m
Canon BP-A type LB-CA90C (90Wh): 2h
Charge Laptops / Smart Devices
You can charge high power laptops or tablets via USB-C
port, and lower power smartphones, earphones by USB-A
port together, for travel carrying convenience.

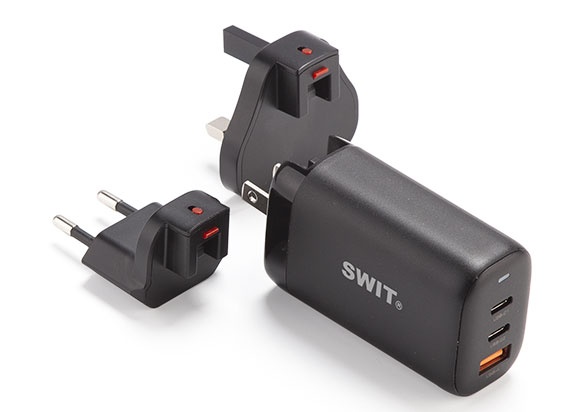

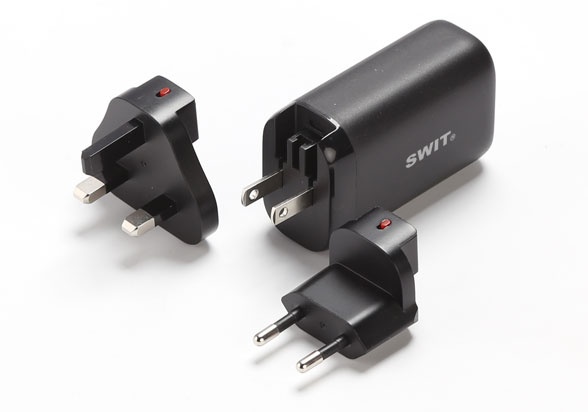

International Plugs for Travel
UC-2065 has a foldable US standard plug, and comes with
conversion accessories for Euro and UK standards. It features
a snap-in design for quick installation and replacement, wide
range AC 100-240V inputs, highly convenient for global travel
charging.
Full Accessories Package
The UC-2065 standard package includes all the essential accessories for worry-free travel.
Input Voltage | AC100V-240V, 1.5A, 50/60Hz |
Output power | 65W Max |
USB-C1 or C2 only | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A, Max 65W |
USB-A only | 5V/3A, 9V/3A, 12V/3A, 20V/3A, Max 60W |
USB-C1 + C2 | C1 Max 45W, C2 Max 20W |
USB-C1 + A | C1 Max 45W, A Max 18W |
USB-C2 + A | C2 Max 20W, A Max 18W |
USB-C1 + C 2+ A | C1 Max 45W, C2 Max 10W, A Max 10W |
Working Environment | Temp -10°C to 40°C; Humidity 10%RH to 90% RH |
Storage Environment | Temp -10°C to 85°C; Humidity 10%RH to 90% RH |
Dimension | 73.5mm × 43.5mm × 31mm charger only |
Weight | Net 100g; With package 164g |
MSRP
MSRP
MSRP
-

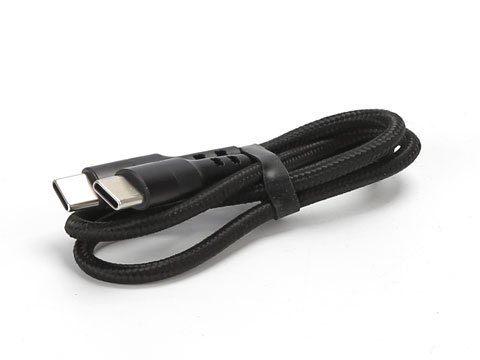

USB-C to C cable
-

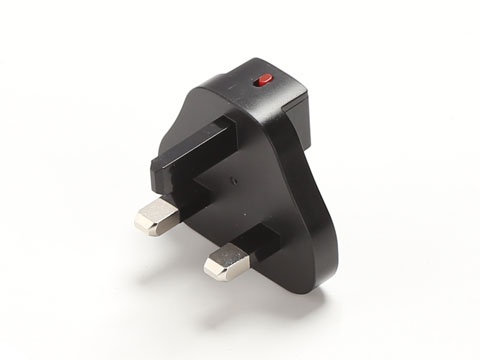

UK plug
-

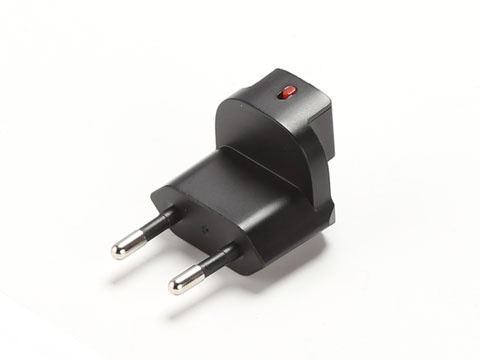

EU plug
-
MINO-S140
140Wh Pocket V-mount Battery Pack
USB-C 48W in, 65W out, 150W/12A high load, D-tap, wire-free internal tech
-
HB-A290B
290Wh 28.8V B-mount Battery Pack
ALEXA35/ALEXA 265/Blackmagic URSA Cine battery, 250W/10A high load, D-tap 16V x2, USB-C 60W in&out, OLED power info
-
LB-CA90C
Canon BP-A Series Battery Pack
90Wh, with D-tap and USB-C 45W in and out, Canon EOS-C70, C80, C200, C300MK2, C400, C500MK2, XF605/705
-
LB-SU90C
SONY BP-U Series Battery Pack
90Wh, with D-tap and USB-C 45W in and out, SONY FS5/FS7, PXW-Z200, HXR-NX800, FX6/FX9, Z280/X280, Blackmagic PYXIS 6K, etc
-

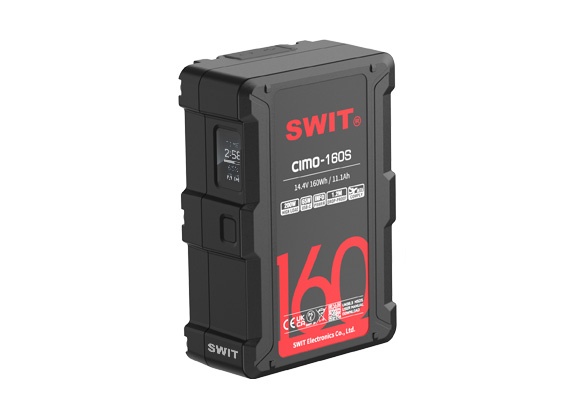

CIMO-160S
160Wh USB-C OLED info Cine V-mount Battery
USB-C 65W, OLED remaining time display, 200W/16A high load, D-tap×2, 1.2m drop proof
-

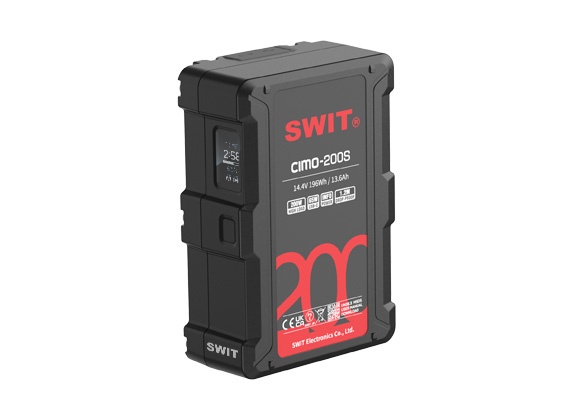

CIMO-200S
196Wh USB-C OLED info Cine V-mount Battery
USB-C 65W, OLED remaining time display, 200W/16A high load, D-tap×2, 1.2m drop proof
-

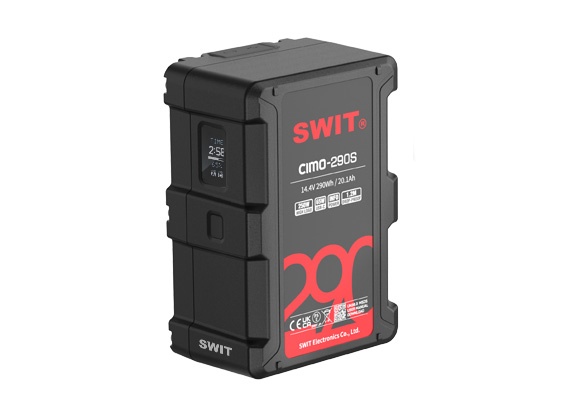

CIMO-290S
