› 21.5-inch 1920×1080 QD-LED Panel
› 1000nits high bright PQ/HLG HDR
› 100% DCI-P3 wide color gamut coverage
› VICO 1.97 A-class Eye Protecting LCD
› 12G-SDI, 4x3G-SDI, HDMI®2.0 4K input
› 4-ch SDI/HDMI® mixed formats multiview
› Any 2 inputs mixed PBP or PIP view
› Horizontal and Vertical (cropped) PBP view
› Zero latency video processing (0.01frame)
› 3DLUT Auto Self-calibration without PC
› Built-in Multi camera Delog LUTs
› User 3DLUTs upload via USB
› Waveform / Focus assist / False color / Zebra
› With flight case and screen protector
› Optional VESA to C-stand adaptor

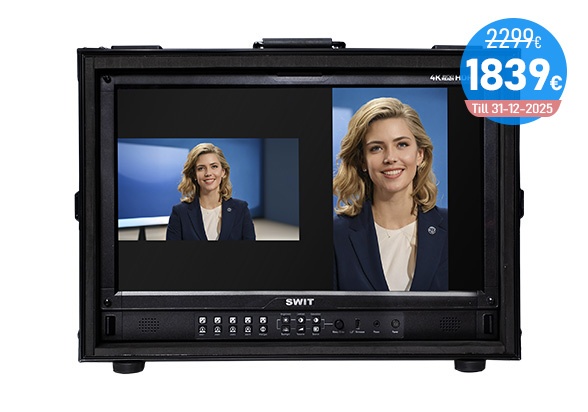

21.5” Field Production Monitor
4K inputs, 1000nits, HDR, Multi-view
FM-215HDR is a 21.5-inch 4K 12G-SDI input high bright HDR monitor for filmset or live streaming productions, go with flight case, screen protector and could be installed on C-stand for convenience field video productions.
1000nits Sunlight View HDR
The monitor is equipped with an advanced Quantum Dot
LED (QD-LED) panel of 1000nits high bright backlight,
outdoor sunlight viewable, and support PQ/HLG/S-log3
HDR monitoring.
All 4K Input Interfaces
FM-215HDR supports various 4K inputs including:
- 12G-SDI 4K in and out
- 4× 3G-SDI Quadlink 4K input
- HDMI® 2.0 4K input

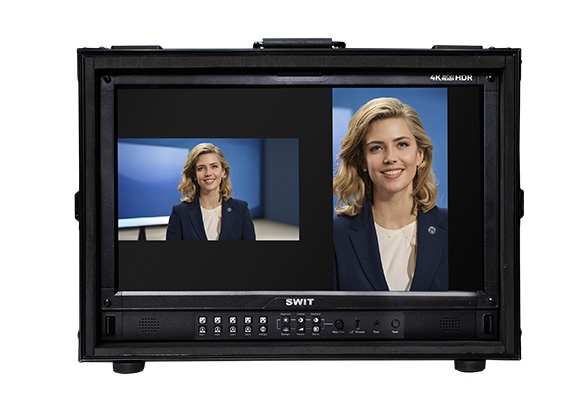

Multiview Display Mode
Supports 4x input video of mixed formats quadview display, or any 2x inputs Pic-by-Pic or Pic-in-Pic view, and any 2x inputs
vertical (Cropped) display mode. You can select HDR/SDR gamma, color gamut independently for each input.
H/V Multi-platform Livestreaming View
1× input source to display regular horizontal view and cropped vertical view
side by side simultaneously, for multi-platform livestreaming productions.
Multiple Video Analysis Patterns

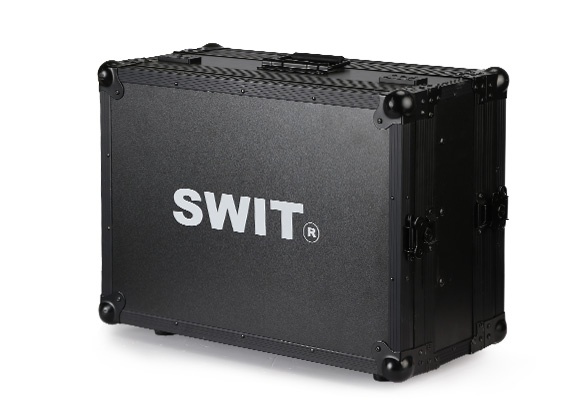

Go with Flight Case
The FM-215HDR monitor is shipped with strong
aluminium flight case, for all-around protections on filmset.

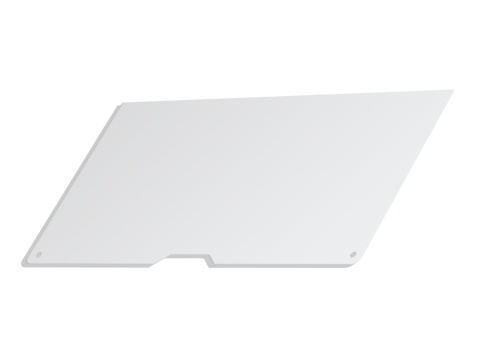

Equipped with Screen Protector
The FM-215HDR monitor provides an acrylic screen protector,
with high transparency and anti-reflection.

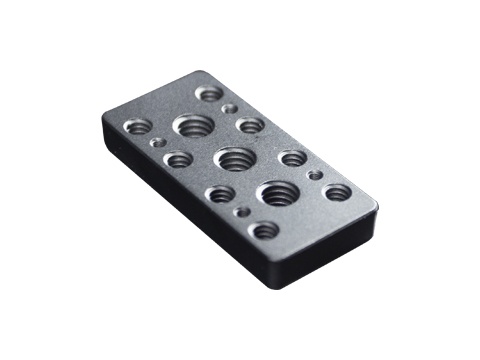

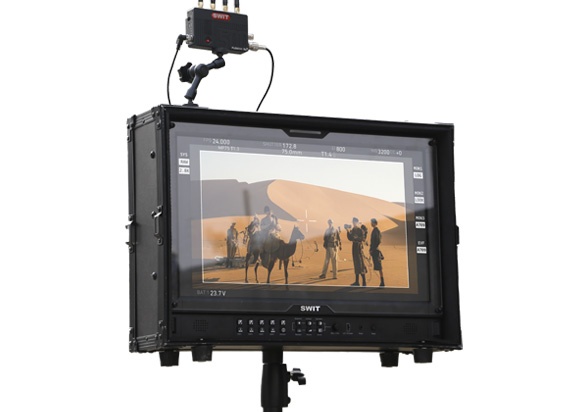

2× Top Cheese Boards
On the top of the flight case, 2× cheese boards
are provided to install accessories like wireless
video receiver, with multiple 1/4” and 3/8”
screw threads.

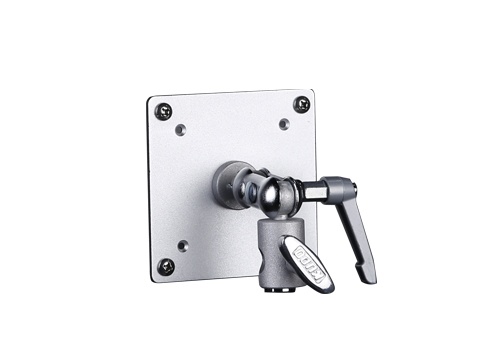

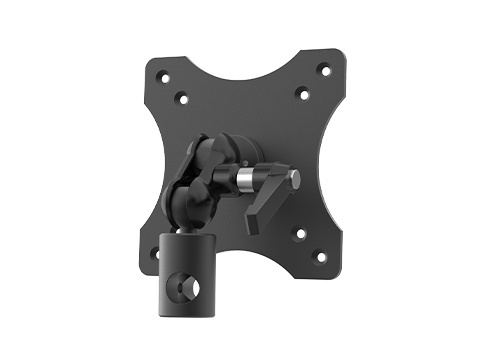

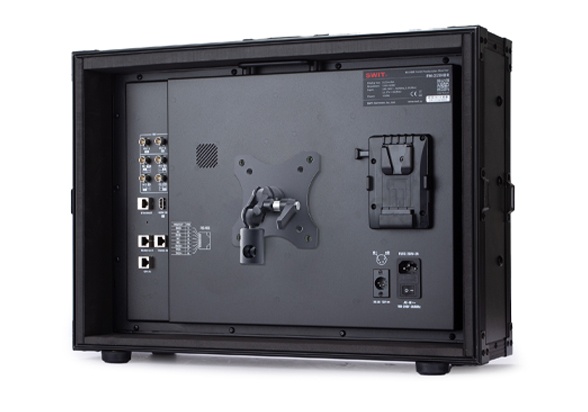

Optional VESA to C-stand Bracket
The monitor has standard 10×10 VESA mount, and provides
VESA to 5/8” baby-pin C-stand / Light stand adaptor bracket.
(Optional purchased accessory)
Display
Panel type | QD-LED |
Size | 21.5 inches |
Display area | 476×268mm |
Resolution | 1920×1080 |
Aspect ratio | 16:9 |
Brightness | 1000nits |
Contrast | 1000:1 |
Color depth | 10-bit |
Signal process | 18-bit |
Viewing angle | 178°(H) /178°(V) |
Input
BNC ×1 | 12G/6G/3G/HD/SD-SDI input |
BNC ×3 | 3G/HD/SD-SDI input |
HDMI® ×1 | HDMI® 2.0 input |
RS485 ×1 | TSL 3.1/4.0 UMD input |
RS485 ×1 | GPI (Tally) input |
RJ45 ×1 | 1000M Ethernet input for Webserver IP control |
Output
BNC ×1 | 12G/6G/3G/HD/SD-SDI loop output |
BNC×1 | 3G/HD/SD-SDI loop output |
RS485 ×1 | TSL 3.1/4.0 UMD output |
Analog audio | 3.5mm headphone and speaker |
Video Format
SDI 1 | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080i (50 / 59.94 / 60) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94), 576I (50) | |
SDI 2/3/4 | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94), 576I (50) | |
Quad Link 4K (Each channel) | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
HDMI® | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) |
General
Input voltage | DC 12V-17V, AC 100-240V, 50/60Hz |
Power consumption | 60W |
Working temperature | 0°C～+50°C |
Working humidity | 10%～90% |
Storage temperature | -15°C～+60°C |
Storage humidity | 10%～90% |
Dimensions | 570×405×260mm (with case) |
Net weight (main body) | Net 7.28kg; With package 16.9kg |
MSRP
MSRP
MSRP
-

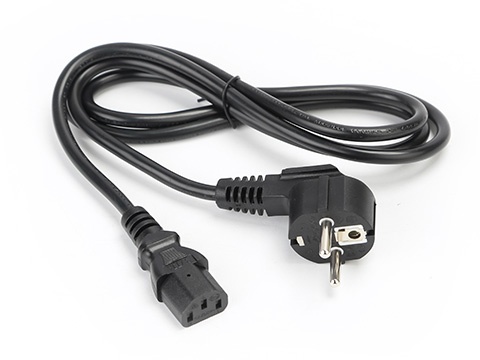

AC power cable
-
VESA to C-stand bracket
-
Install Plate x2
-
Screen Protector
-

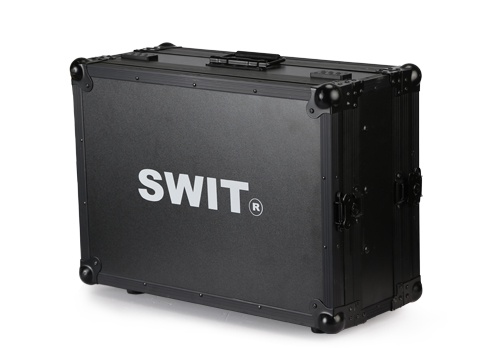

Flight Case
-

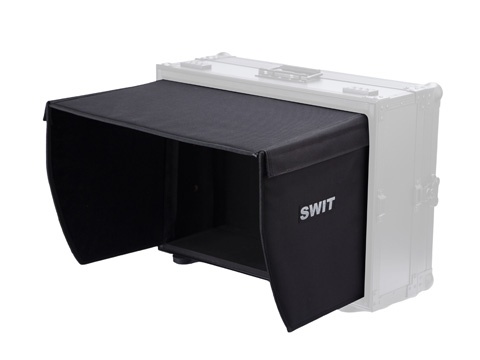

MA-HC215
Foldable Sunhood for FM-215HDR, could be folded into the flight case.
We provide 2 years conditional warranty for monitors (1 year for LCD panel).
The following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) The number of bright or dark spots of the LCD panel shall conform to the standard regulated by SWIT. (Check User Manual for details)
(3) Any damage caused by powering the monitor with third-party power adaptors.
(4) Any damage of LCD panel caused by external forces.
(5) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(6) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
