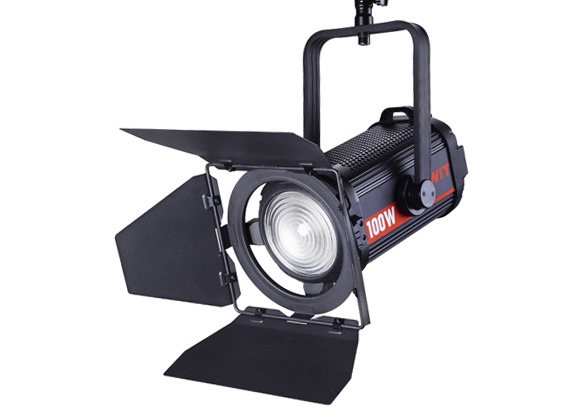

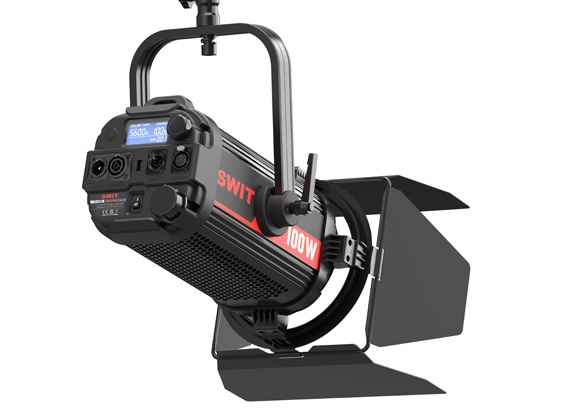

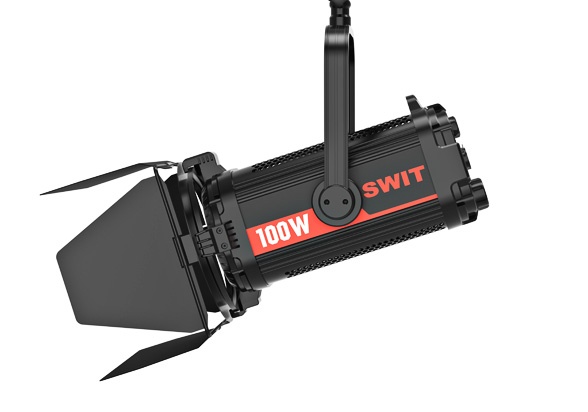

FL-C100 100W Daylight Fanless Studio Fresnel Light

› 100W COB LED Fresnel studio light

› Fanless, absolutely silent

› 12-26° Flood/Spot angle adjust

› 60,000Lux@1m high bright hard light

› 5600K daylight color temperature

› 0-100% flick-free dimming

› CRI Ra 96, TLCI 97

› DMX512 In & out dimmer control

› USB power out for wireless DMX receiver

› LCD display color, dimmer and DMX addr

› PowerCON TRUE1 AC in and loop out

› 4-leaf metal barn doors and Yoke bracket

Features

100W Fanless Fresnel Light

Brighter, harder, absolutely silent

FL-C100 is a 100W COB-LED fresnel light of daylight color temperature, 60,000Lux @1m high bright, with DMX control, high CRI/TLCI and accurate color performance, and no fan, no noise at all, for broadcast studio, theatre, film set install applications.



12°-26° Spot/Flood Adjust

FL-C100 outputs 12°-26° beam angle by adjusting position of LED board internally, 0 to 100% PWM digital dimming, smoothly and non-flickering.



5600K Daylight Color Temp

FL-C100 outputs accruate and stable 5600K color temperature for daylight studio application.

Accurate Color Render

CRI 96; TLCI 97

CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while FL-C100 offers the ultra high CRI at 96 and TLCI at 97, and will not lose the object original colors.

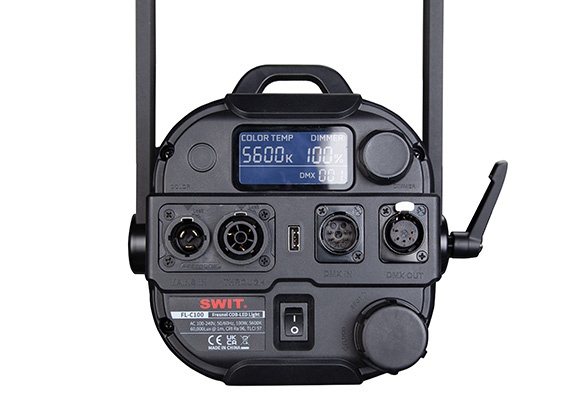

DMX, AC IN & LOOP

FL-C100 provides 5-pin XLR DMX512 in and out, with a 5V USB-A socket to power wireless DMX receiver. For convenient studio installation, the FL-C100 provides PowerCON True 1 AC in and loop out sockets, which will loop through more than 25x FL-C100 lights under 220V AC voltage, and 13x FL-C100 lights under 110V voltage.

4-leaf Metal Barn Door

FL-C100 is equipped with 4-leaf metal barn doors, dismountable and rotatable. The light also provides a special black-out cloth to prevent the light leakage.

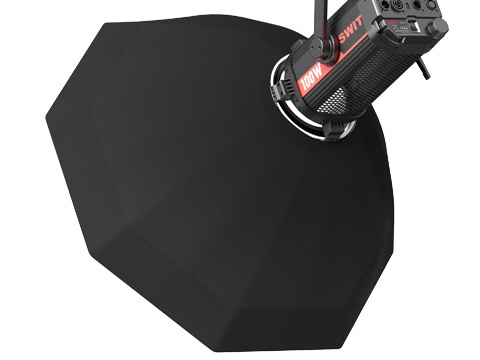

Optional Diffuser Box

Provide Octangle Diffuser Box as optional accessory. Compatible with all 90mm diameter fresnel lights includes SWIT FL-C100, FL-C100D, FL-C200D, FL-C400D, etc, with dual diffuser layers and eggcrate.
Part Number: LA-BC90.

LED

COB Chip-on-board LED

Spot angle

12° - 26° adjust

Illuminance

60,000Lux@1m/Spot

Color Temperature

5600K

CRI

96

TLCI

97

Power

100W

USB

5V USB-A power out

DMX

DMX512, 5pin XLR IN & OUT

AC Power

PowerCON TRUE1 AC 100-240V 50/60Hz input & output

Dimension

160×160×364mm

Weight

5.2kg
Basic Package

MSRP

MSRP

MSRP

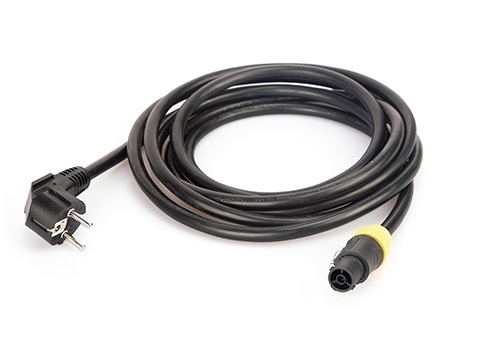

  • PowerCON TRUE1 AC cable

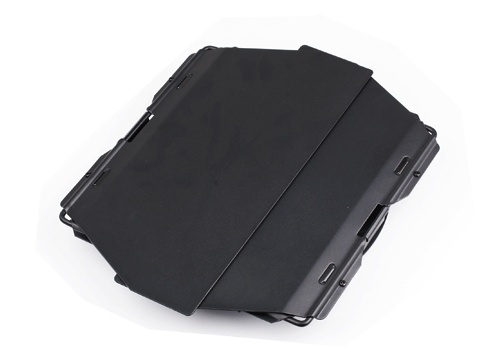

  • Barn door kit

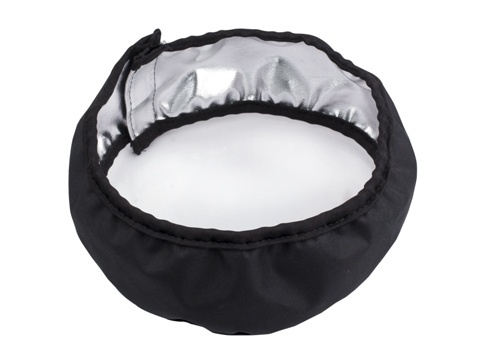

  • Black out cloth

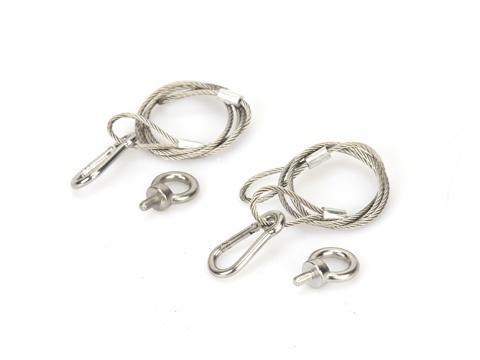

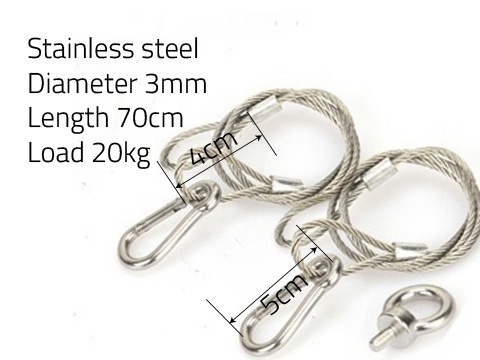

  • Safety rope

  • LA-BC90

    Octangle Diffuser Box with dual diffuser layers and eggcrate, Compatible with all 90mm diameter fresnel lights includes SWIT FL-C100, FL-C100D, FL-C200D, FL-C400D, etc

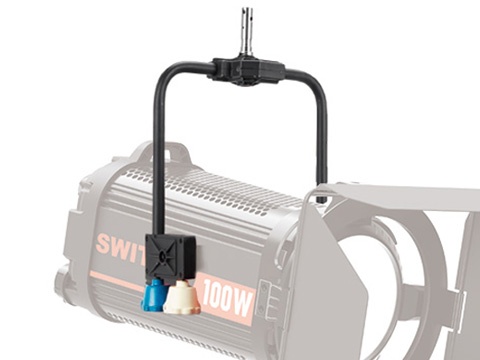

  • LA-POC100

    2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head. Dedicated size for SWIT FL-C100 and FL-C100D studio fresnel lights

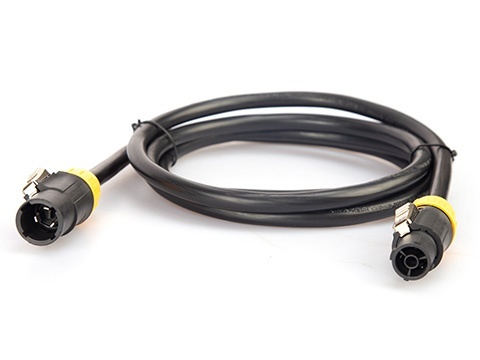

  • PA-LC20

    PowerCON TRUE1 loop out cable, 2meters, 16A load, AC 220V: Max 25x FL-C100 looped AC 110V: Max 13x FL-C100 looped
  • FL-C60D

    60W Bi-color Fresnel COB-LED Light

    25000Lux super bright, 15°-60° beam angle, 2700K-8000K adjust, Super high CRI 95, TLCI 97, silent mode, DMX control

    $8222
  • FL-C100D

    100W Bi-color Fanless Studio Fresnel Light

    COB-LED, 12-26° adjust, 55,000Lux@1m, 2700-6500K, CRI 97, TLCI 99, no fan, no noise
