VANGO-100L 100W Long Ratio Ultra Slim RGBW Light

›  180pcs RGB + 300pcs White SMD-LEDs

›  Edge mounted LEDs, 21mm ultra slim

›  3x0.5' Long ratio, 100W power, 1800Lux @ 1meter

›  No fan, No noise

›  Time-Division drive tech, ultra bright color light

›  CCT/HSI/RGB/CIE/GEL/EFF color modes

›  Built-in 20x Rosco and 20x LEE Gels

›  2800K-10000K, G/M±1.00 adjustment

›  CRI Ra 96, TLCI 93

›  On-board 3.5-inch color LCD visualized color pick

›  DMX512 3bit/6bit/7bit color control

›  DC 11-34V wide input voltage

›  On-board V-mount or Gold mount battery plate

›  IOS/Android APP bluetooth control

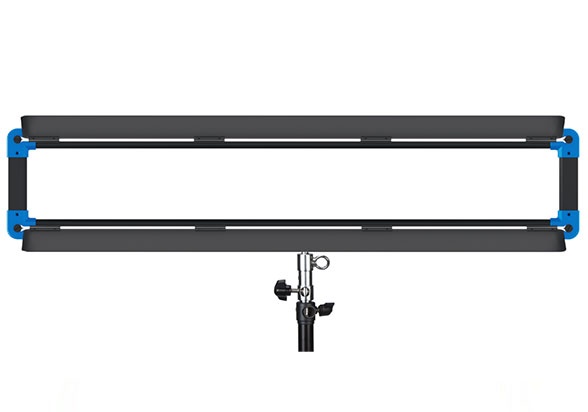

›  With 2-leaf metal barn doors

›  Provide portable 3-light kit

Features

100W Long Ratio Ultra Slim RGBW

VANGO-100L, the slim portable size 100W RGBW panel of 3x0.5’ Long Ratio size and with extreme high color light output, equivalent to regular 300W RGB color light intensity, for your flexible video studio setup.

3x0.5’ Long Ratio, 21mm Ultra Slim

With SWIT unique Edge Mounted SMD and 90° high efficient light guide tech, the VANGO-100L has a ultra slim size to only 21mm thickness, and diffused to soft light to paint the entire environment.

Time Division Tech, Brighter Color Light

The regular RGB panels are high bright in CCT mode, but much lower in RGB color mode. That’ s because in a regular RGB light, the RGB color LED and White LED have fixed rates to share the total power of the light, and when output color lights, the RGB LEDs use only 1/3 power. By SWIT unique Time Division Drive tech, full power of the light can be assigned to RGB color LEDs, and greatly increased the intensity of color light. The 100W VANGO-100L color light intensity equals to a regular 300W RGB color light intensity.

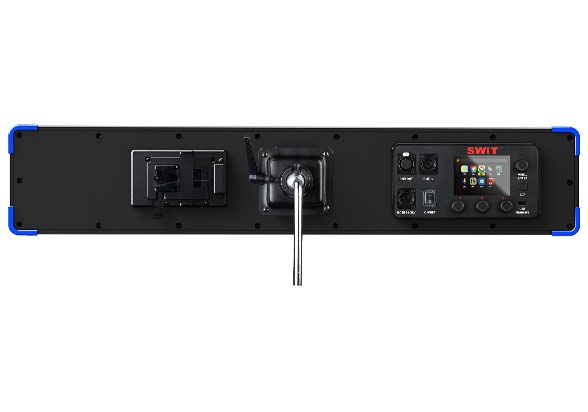

Control Panel

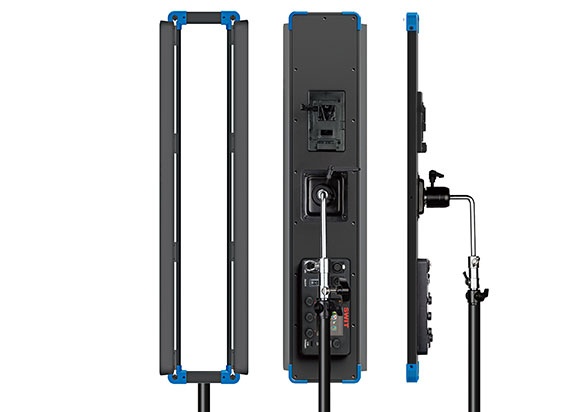

VANGO-100L rear control panel supports 5-pin DMX in & out, 4-pin XLR DC 11-36V in, and V-mount battery plate (Gold mount for option), and a large color LCD with menu and hot keys for convenient color picking. The USB-A port is for firmware update or user color profile upload, and to power wireless DMX receiver.

On-board 3.5-inch Color LCD

Visualized color selection

Bluetooth APP Control

Download “SWIT Console” APP on IOS App Store or Google PLAY, to connect and control VANGO lights via Bluetooth.

SWIT Console APP

The APP control supports CCT, HSI, RGB, CIE color modes, and select preset color GELs and light effects.

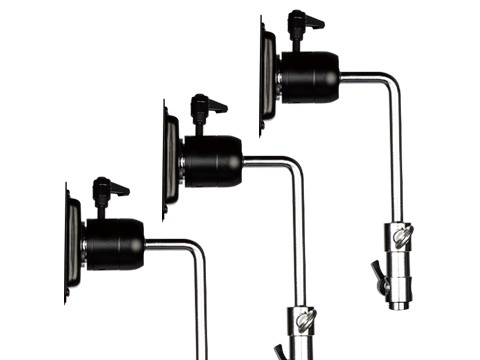

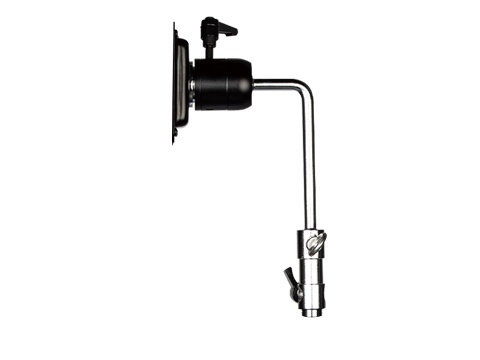

Swanneck Strong Ball Head

VANGO-100L provides a strong swanneck ball head for light stand mounting, both junior pin male and baby pin female.

Single Light Package

The single light package includes:

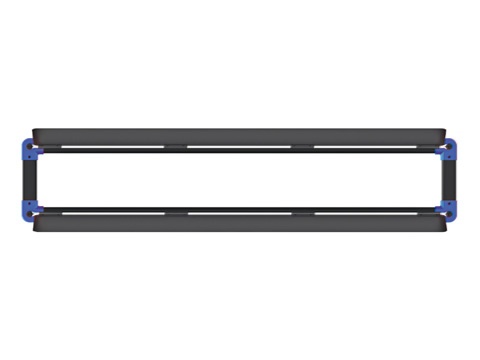

1x VANGO-100L light with barndoor
1x Swanneck ball head connector

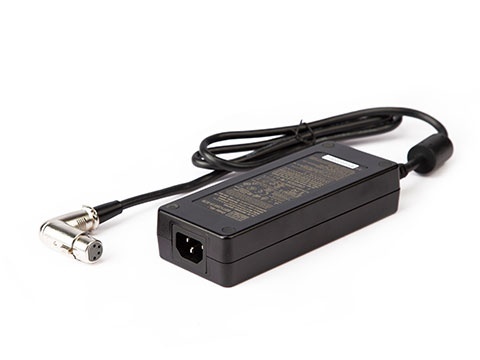

1x AC-DC adaptor

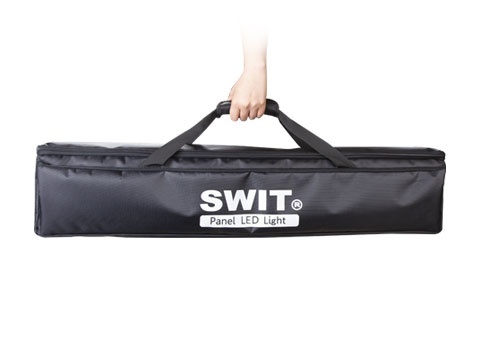

1x Carrying bag

3-Light Kit Package

The 3-light kit package includes:

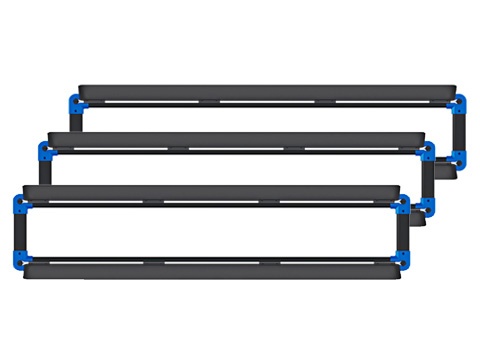

3x VANGO-100L lights with barndoor
3x Swanneck ball head connectors

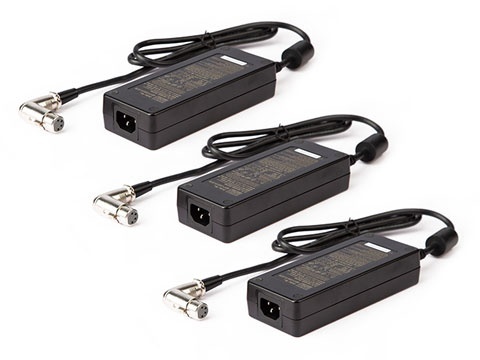

3x AC-DC adaptors

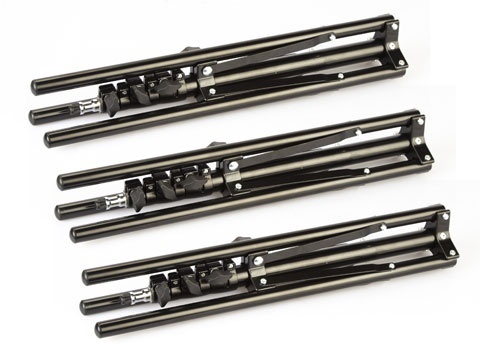

3x Light stands

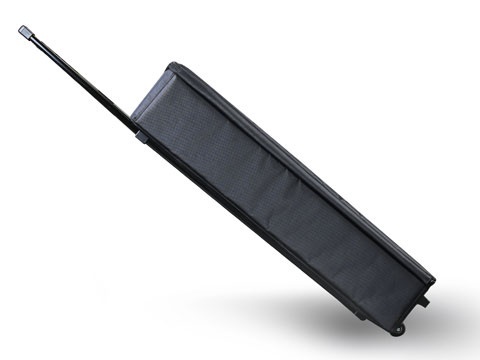

1x Trolley case

Ceiling Hoisting Version
VANGO-100LH

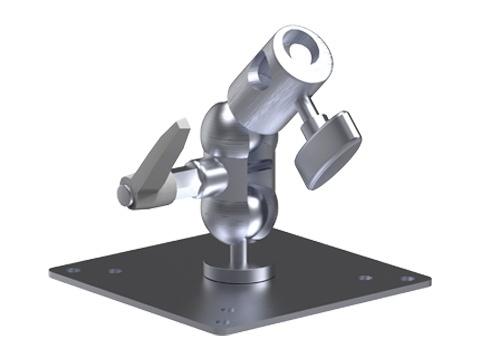

Provide a specialized short bracket for ceiling hoisting, which can bring the light fixture as close to the ceiling as possible, support ±90° tilt and 360° rotate.
The studio hoisting version SKU: VANGO-100LH



LED

180pcs RGB + 300pcs W SMD LEDs

illuminance

1800Lux @ 1m

Beam angle

65°

Color Temperature

2800K~10000K, G/M±1.00

CRI

96

TLCI

93

Power

100W

DMX

DMX512, 5pin XLR IN & OUT

USB

USB-A power out & firmware update

Input voltage

4pin XLR, DC 11V~34V IN

Dimension

839×163×21mm

Lighting area

780×104mm

weight

Net 5.7kg with barndoor; With package 9.7kg
Basic Package

Single Light Package

MSRP

3-Light Kit Package

MSRP

Ceiling Hoisting

MSRP

  • VANGO-100L with barndoor

  • AC-DC Adaptor

  • Swanneck ball head

  • Carrying Bag

  • VANGO-100L with barndoor x3

  • AC-DC Adaptor x3

  • Swanneck ball head x3

  • Light stand x3

  • Trolley Case

  • The light with barndoors

  • AC-DC Adaptor

  • Short hoisting bracket

  • PL-E90L

    90W Bi-color Long Ratio LED Panel

    0.5×3 feet size, 2000Lux @1m, 2700-6500K, DMX, CRI 99 TLCI 99

  • VANGO-70

    70W 1:1 Ultra Slim RGBW Panel Light

    Equivalent to a 200W color light, 21mm slim, on board LCD, APP control

  • VANGO-100

    100W 2:1 Ultra Slim RGBW Panel Light

    Equivalent to 300W color light, 21mm slim, on board LCD, APP control
