› KUWI Wireless Technology
› 5.18-5.30GHz and 5.76-5.83GHz frequency
› DFS Comply
› HDMI® input and loop output
› USB Video Capture output for PC/Mac
› 500ft/150m (Line-of-Sight) distance
› Strong Wall-Cross Performance
› 2-ch HDMI® audio transmission
› Auto detecting wireless environment and switching
› Support 7 pairs working in one location
› Wireless protocol & content double encryption
Wireless HDMI® Transmission
New Update with USB Video Capture

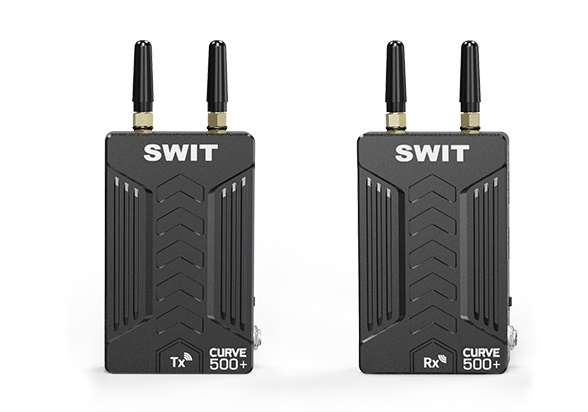

CURVE500+ wireless system is based on SWIT KUWI
wireless video technology, NOT WIFI, 5.1-5.9GHz
license free, DFS comply, supports HDMI® 1080p60
transmit 500 feet (150 meters) Line-of-Sight distance.
As the updated version, CURVE500+ support USB video capture output to computer for live streaming.

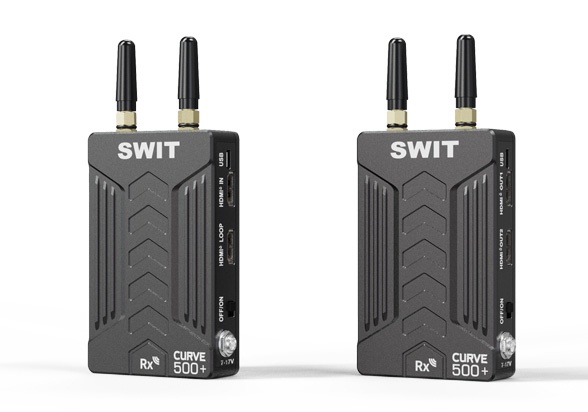

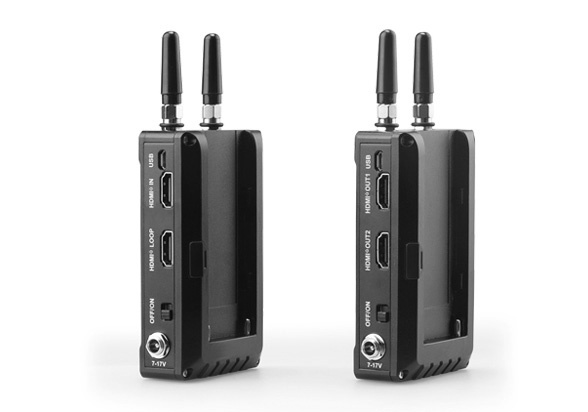

Input & Output
The Transmitter (Tx) supports
1x HDMI® input
1x HDMI® loop output
The Receiver (Rx) supports
2x HDMI® output
1x Micro USB Video Capture output
USB Video Capture for PC/Mac
CURVE500+ Receiver provides an USB port for video capture
output to computer. You can find CURVE500+ wireless video
source from video conference software like MS Team, ZOOM
etc, to capture high quality up to 1080p60 video instead of computer webcam.
USB Video Capture for PC/Mac
You can pull CURVE500+ wireless receiving
video source to OBS studio, editing, switching
and live streaming broadcasting.
500ft/150m Strong Wall-cross
CURVE500+ supports 500ft/150m (Line-of-sight) reliable
wireless transmission, and featured stronger wall-cross
performance due to both RF optimize and image quality
optimize, so that will keep video transmission without
date lost or crash comparing to regular 5GHz wireless
transmitters.
* Supports HDMI® embedded audio (CH1&2) transmission.
Backstage Frequency Jumping
CURVE500+ works between 5.1-5.9GHz, DFS comply,
and has built-in wireless scanner to detect wireless
condition and automatically jump to the best wireless
channel to keep reliable connection and transmission.
Up to 7 Pairs Work Together
At one location, you can use up to 7 pairs of CURVE500+
wireless system, without interference to each other.
Input / Output
Transmitter | HDMI® 1.3 input ×1 HDMI® 1.3 loop output x1 |
Receiver | HDMI® 1.3 Primary output ×1 HDMI® 1.3 Secondary output x1 Micro USB video capture output x1 |
Video Formats
HDMI® | 1080p60, 1080p59.94, 1080p50 |
| 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; | |
| 1080psf23.98, 1080psf24 | |
| 1080i60, 1080i59.94, 1080i50; | |
| 720p60, 720p59.94, 720p50 | |
USB | 1080p60, 1080p59.94, 1080p50 |
| 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; | |
| 720p60, 720p59.94, 720p50 |
Wireless
Frequency | 5.18GHz-5.30GHz and 5.76GHz-5.83GHz |
RF Modules | OFDM 16QAM, 64QAM, QPSK, BPSK |
RF Power | 50mW |
Transmission Distance | 500 feet / 150 meters (Line of sight) |
General
Input voltage
| Transmitter DC 7-17V Receiver DC 7-17V |
Power Consumption
| Transmitter 7.5W Receiver 7W |
Dimension(w/o antenna)
| Transmitter 114.18×69.55×28 (mm) Receiver 114.18×69.55×28 (mm) |
Net weight
| Transmitter 180.8g Receiver 181.2g; With package 1.05kg |
Working Temperature | 0°C -+40°C |
MSRP
MSRP
MSRP
-

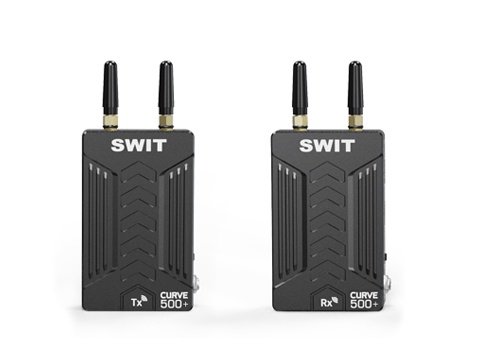

CURVE500+ 1x Transmitter 1x Receiver
-

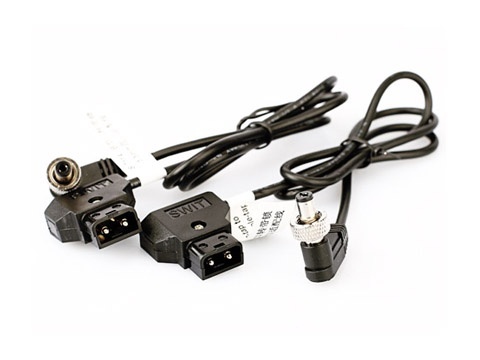

D-tap to lockable Pole-tap cable x2
-

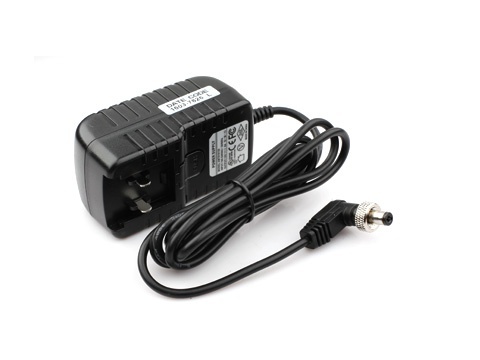

AC-DC Adaptor
-

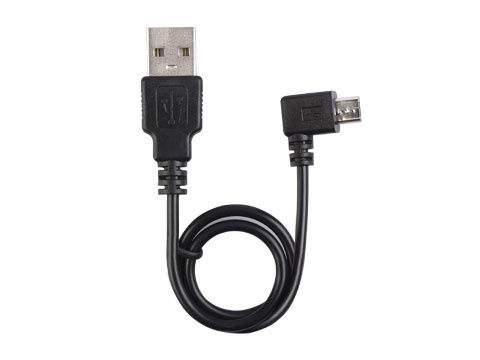

Micro USB to USB-A cable
-

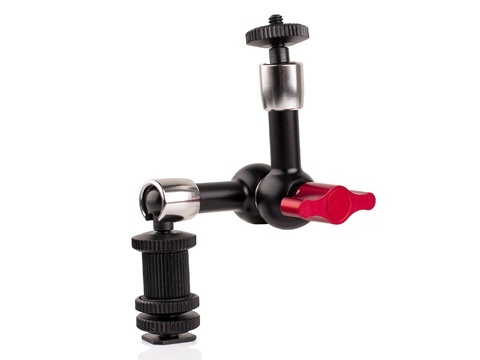

Arm Trestle
Cold shoe and 1/4" Arm Trestle to mount the Transmitter onto camera. -

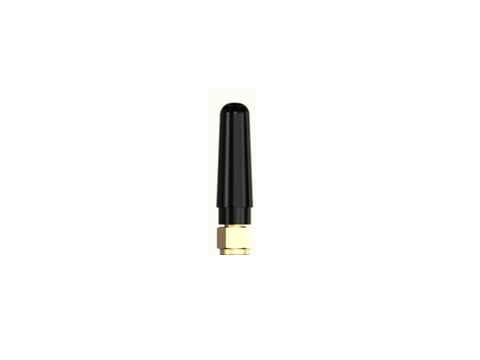

Antenna
Spare omni antenna for FLOW500 and CURVE500+, both Transmitter and Receiver
We provide 1 year conditional warranty for Wireless video and converters.
The following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) The attenuation of signal quality resulting from being used in any special environments.
(3) Any damage caused by powering the product with third-party power adaptors.
(4) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(5) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
